ABB 2585 Thomas & Betts 2585 2-1/2 Straight General Purpose Cable Gland / Strain Relief Cord Connector - Cord Range: 1.937 - 2.187

Product Description

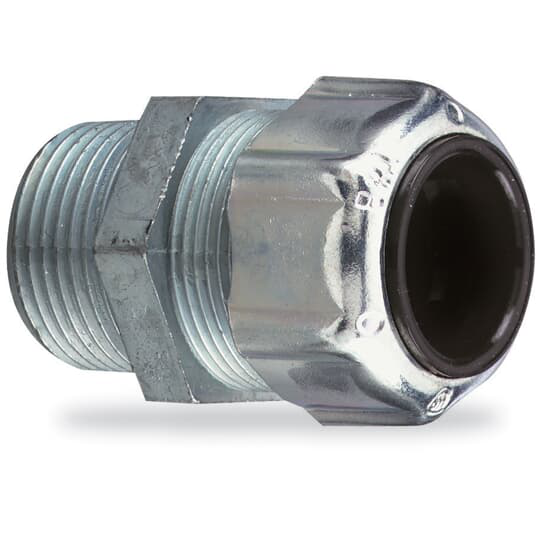

The ABB 2585 is a 2-1/2 inch straight general purpose cable gland and strain relief cord connector. It accommodates a cord range from one point nine three seven to two point one eight seven inches. Made of malleable iron, this connector is designed for liquidtight applications.

• Suitable for installation in hazardous locations as permitted by NEC 501-4(b).
• Meets Coast Guard CG293 requirements.
• Can withstand temperatures up to 105 degrees Celsius.

Product Highlights

This strain relief connector provides reliable support for flexible cords in a wide range of applications.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Thomas & Betts Co

Technical Specifications

• Trade Size: 2-1/2 inches
• Type: Straight
• Material: Malleable Iron
• Color: Metallic
• Connection Type: Thread
• Temperature Rating: 105 degrees Celsius
• Dimensions: 3-3/4 inches diameter x 3-7/32 inches length
• Standards/Approvals: ANSI NFPA 70-2008, Coast Guard CG293, CSA C22.2 File No. 18.3, UL 514B File No. E13938
