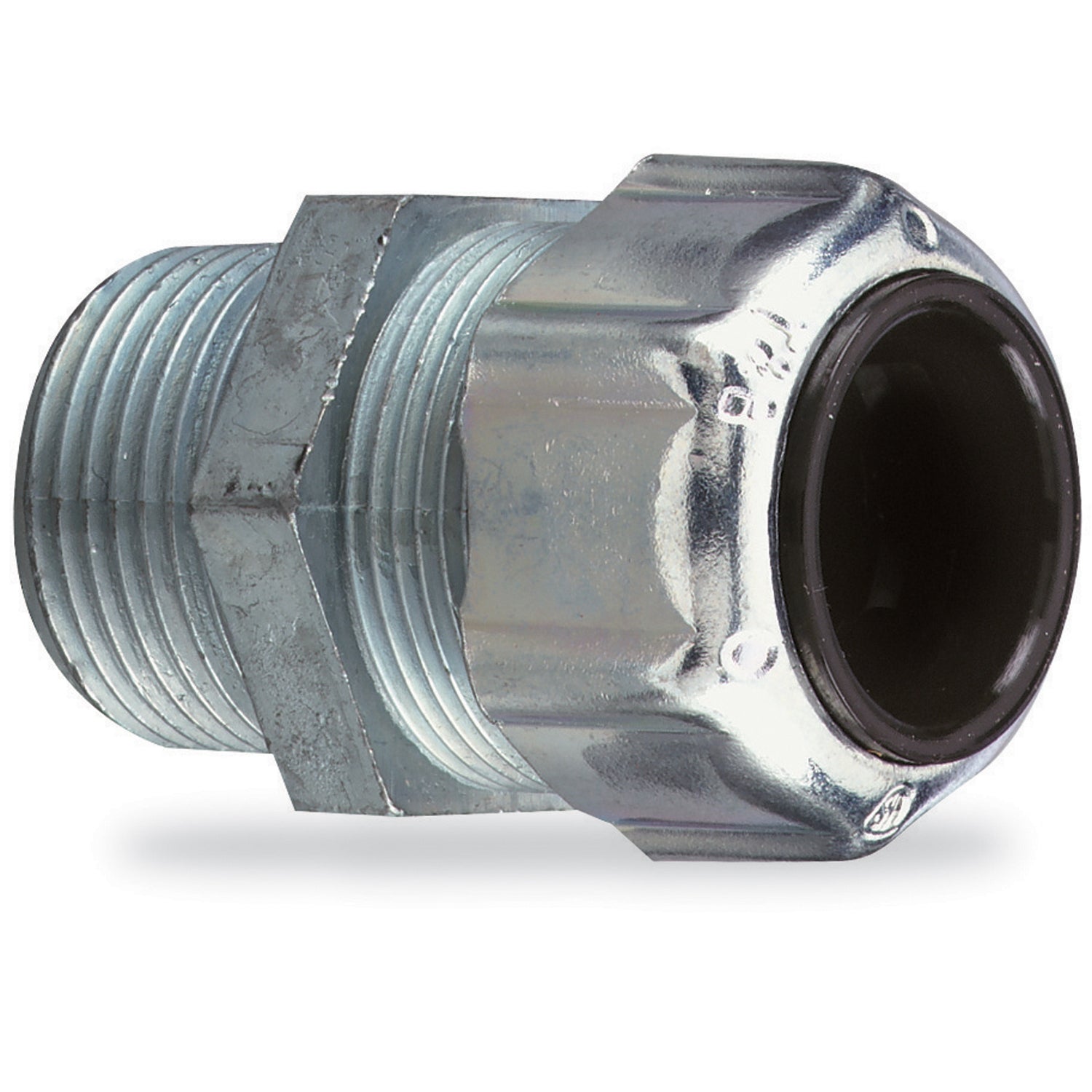

ABB 2563 Thomas & Betts 1-1/2 Straight Strain Relief Connector

Product Description

ABB 2563 is a liquidtight strain relief cord connector that provides secure connections for cables with a diameter ranging from one inch to one point one eight seven inches. Made of die-cast zinc, it is suitable for hazardous locations in accordance with NEC 501-4(b).

• Trade size of one and one half inches.
• Rated for a maximum temperature of one hundred five degrees Celsius.
• Compatible with S, SO, SV, ST, STD, SJ, SJO, SJT, SJTO, and SVD cable types.

Product Highlights

This connector meets various industry standards, making it suitable for use in residential and commercial installations.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 2563

Technical Specifications

• Application: For hazardous locations where general purpose equipment is specifically permitted by NEC 501-4(b)
• Cable Openings: 1 to 1.187 inches
• Connection Type: Thread
• Material: Die Cast Zinc
• Finish: Zinc Plated
• Dimensions: 2-11/32 inches diameter x 2-7/16 inches length
• Temperature Rating: 105 degrees Celsius
• Trade Size: 1-1/2 inches
• Standards/Approvals: ANSI NFPA 70-2008, Coast Guard CG293, CSA, UL E13938
