Product Description

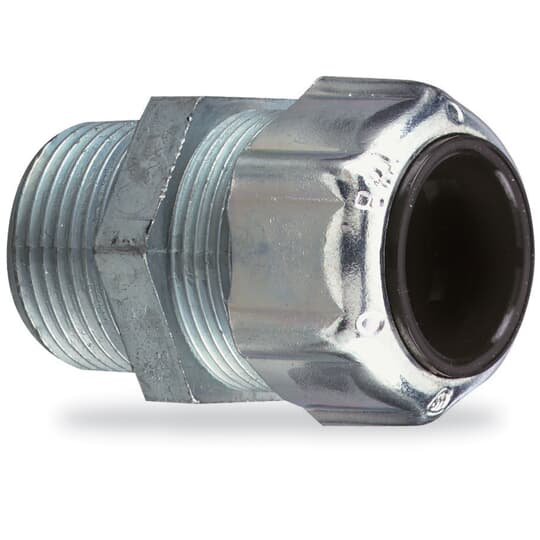

The ABB 2562 is a straight liquidtight strain relief cord connector designed for cable openings ranging from .812 to 1.000 inches. This connector provides a robust solution for electrical installations that require reliable strain relief and protection in hazardous areas. The body is crafted from die-cast zinc, ensuring durability and compliance with safety standards.
- Cable range: .812 to 1.000 inches
- For use in hazardous locations per NEC 501-4(b)
- Temperature rated up to 105 degrees Celsius
Product Highlights
This cord connector is suitable for industrial settings, enhancing safety and functionality in environments where general-purpose equipment is permitted. Its metallic finish ensures resistance against corrosion.
Product Information
Standard Information
-
Brand: ABB
-
Manufacturer: Thomas & Betts Co
Technical Specifications
-
Trade Size: 1-1/2 inches
-
Material: Zinc Die Cast
-
Finish: Zinc Plated
-
Connection Type: Thread
-
Dimensions: 2-11/32 inches diameter x 2-1/2 inches length
-
Temperature Rating: 105 degrees Celsius
-
Applications: Suitable for hazardous locations where general purpose equipment is specifically permitted
-
Standards/Approvals: ANSI NFPA 70-2008, Coast Guard CG293, CSA C22.2 File No. 18.3, UL 514B File No. E13938
