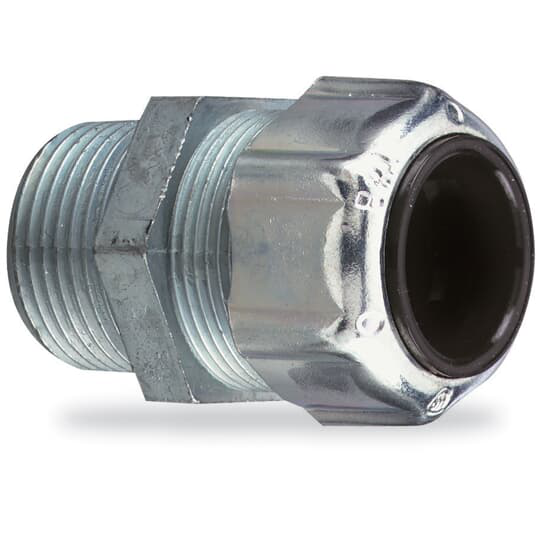

ABB 2556 Thomas & Betts 2556 1-1/4 Straight General Purpose Cable Gland / Strain Relief Cord Connector - Cord Range 1.187 - 1.375

Product Description

ABB 2556 is a Liquidtight strain relief cord connector made by Thomas & Betts. This connector is designed for cord range between one point one eight seven inches to one point three seven five inches. It is crafted from durable malleable iron, suitable for use in various applications, including hazardous locations.

• Suitable for cord sizes from 1.187 to 1.375 inches.
• Constructed from malleable iron with a zinc plated finish.
• Ideal for use in hazardous environments as per NEC 501-4(b).

Product Highlights

This strain relief connector provides necessary protection for cables in wet or outdoor environments.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 2556

Technical Specifications

• Application: Suitable for hazardous locations where general purpose equipment is specifically permitted by NEC 501-4(b)
• Cable Openings: 1.187 to 1.375 inches
• Connection Type: Thread
• Temperature Rating: 105 degrees C
• Finish: Zinc Plated
• Material: Malleable Iron
• Dimensions: 2.5 inches Diameter x 2.3125 inches Length
• Standards/Approvals: ANSI NFPA 70-2008, Coast Guard CG293, CSA C22.2, UL 514B
