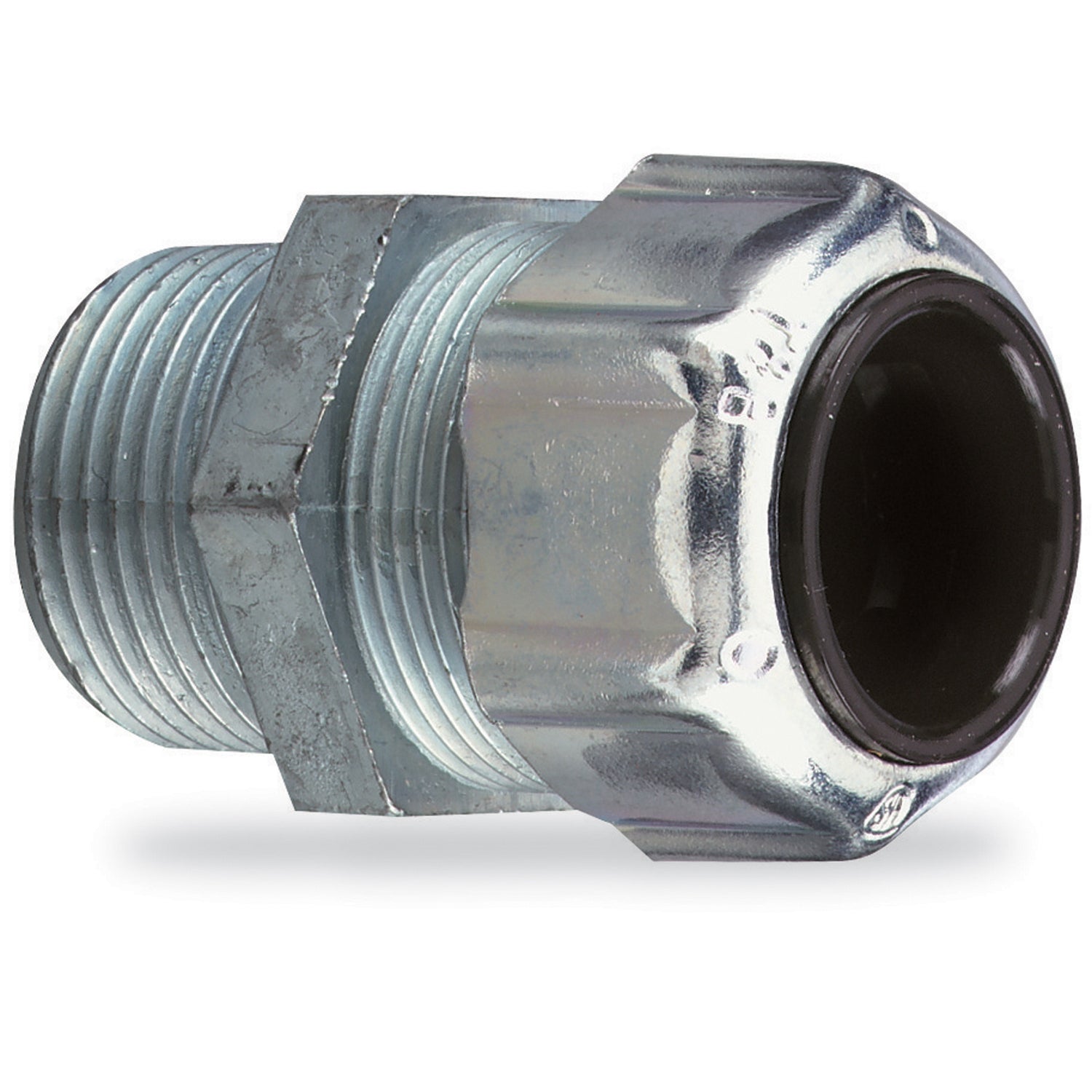

ABB 2549 Thomas & Betts 1 Straight General Purpose Cable Gland / Strain Relief Connector

Product Description

The ABB 2549 is a liquidtight strain relief cord connector. It is designed for a cord range of one point zero six five to one point two zero five inches. This model is made from malleable iron and is suitable for both ordinary and hazardous locations.

• Meets Coast Guard CG293 standards.
• Thread type: NPT.
• Temperature rating of one hundred five degrees Celsius.

Product Highlights

Ideal for various applications in electrical fittings, the ABB 2549 connector is crucial for maintaining secure and reliable connections in electrical systems.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Thomas & Betts Co

Technical Specifications

• Application: Suitable for hazardous locations as permitted by NEC 501-4(B)
• Cable Openings: One point zero six five to one point two zero five inches
• Connection Type: Thread
• Material: Malleable Iron
• Finish: Zinc Plated
• Trade Size: One inch
• Dimensions: Two and three eighths inches diameter x two and one sixteenth inches length
• Operating Temperature: Zero to one hundred five degrees Celsius
• Standards/Approvals: ANSI NFPA 70-2008, Coast Guard CG293, CSA C22.2 File No. 18.3, UL 514B File No. E13938
