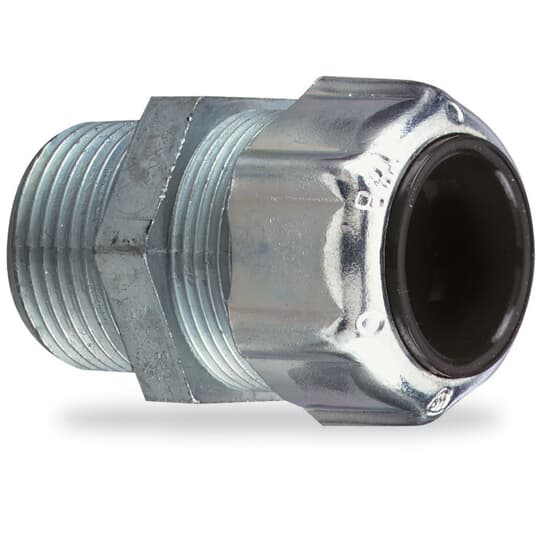

ABB 2548 1 Straight General Purpose Cable Gland / Strain Relief Cord Connector - Cord Range: .880 - 1.065

Product Description

The ABB 2548 is a strain relief cord connector. It is designed for use with cables having a diameter ranging from point eight eight zero to one point zero six five inches. This connector is liquidtight and made from malleable iron, built to withstand hazardous conditions.

• Cord range of point eight eight zero to one point zero six five inches
• Liquidtight construction for effective sealing
• Suitable for hazardous locations as per NEC standards

Product Highlights

This product is ideal for use in electrical installations requiring a secure and reliable cord connection.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Thomas & Betts Co

Technical Specifications

• Type: Liquidtight
• Trade Size: 1 inch
• Material: Malleable Iron
• Temperature Rating: 105 degrees C
• Thread Type: NPT
• Cable Openings: 0.880 to 1.065 inches
• Standards/Approvals: ANSI NFPA 70-2008, Coast Guard CG293, CSA C22.2 File No. 18.3, UL 514B File No. E13938
