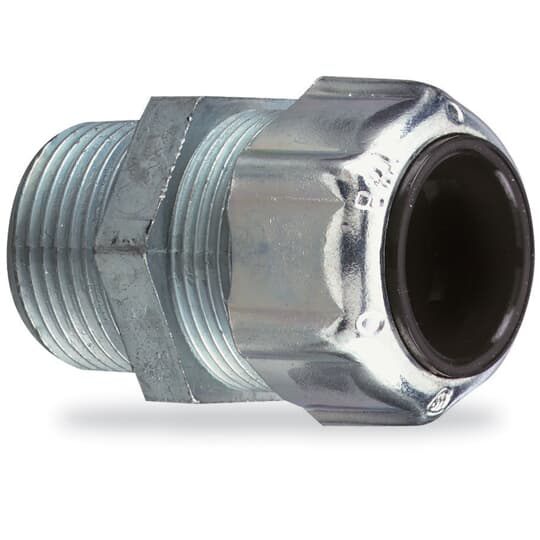

ABB 2546 Thomas & Betts 1 Straight General Purpose Cable Gland Strain Relief Connector

Product Description

The ABB 2546 is a liquidtight strain relief cord connector designed for use with cable openings ranging from three-quarters inch to seven-eighths inch. Made from die-cast zinc, this connector provides durability and reliability for electrical applications.

• Liquidtight design for protection against moisture and contaminants
• Suitable for hazardous locations as per NEC standards
• Temperature rating of one hundred five degrees Celsius

Product Highlights

Ideal for applications requiring secure cable fittings in challenging environments.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Thomas & Betts Co

Technical Specifications

• Trade Size: 1 inch
• Material: Die Cast Zinc
• Connection Type: NPT
• Temperature Rating: 105 degrees Celsius
• Dimensions: 1-11/16 inches diameter x 1-7/8 inches length
• Cable Openings: 3/4 to 7/8 inches
• Standards/Approvals: CSA, UL E13938
• Application: Suitable for hazardous locations as permitted by NEC 501-4(b)
