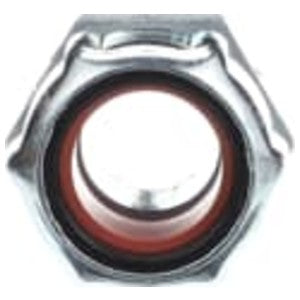

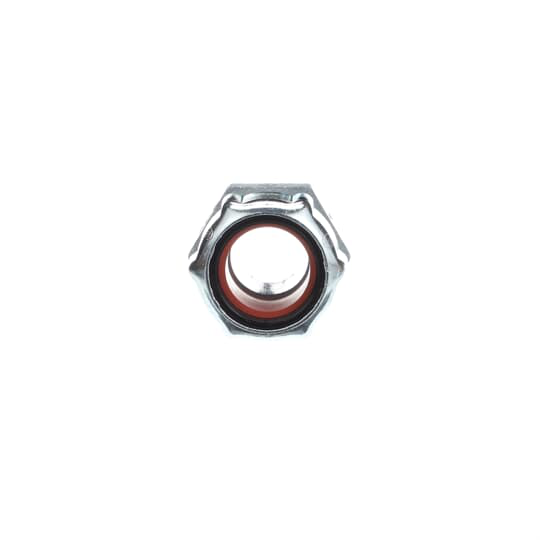

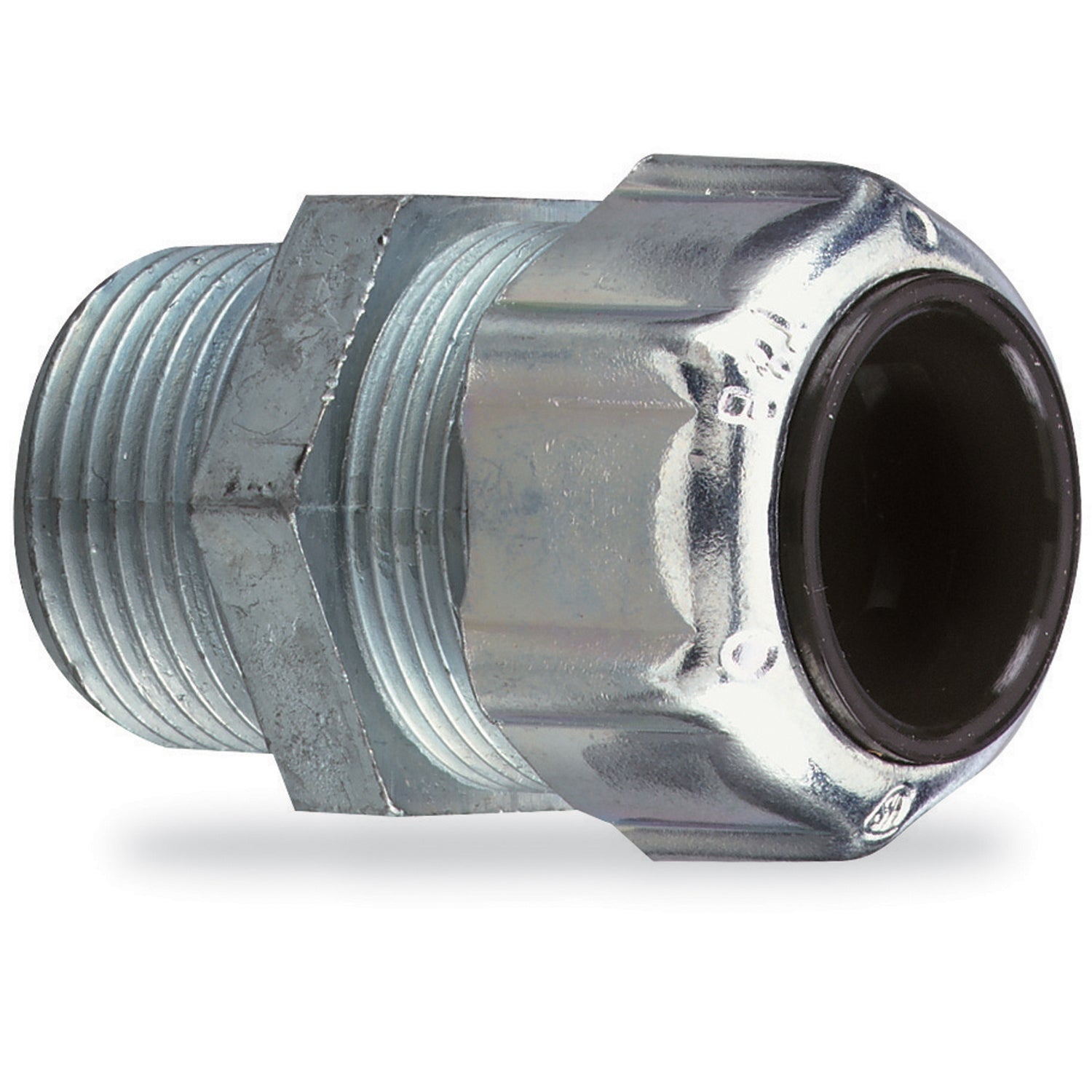

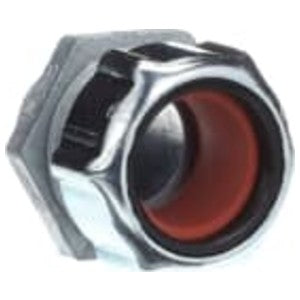

Abb 2536 3/4 inches straight general purpose cable gland / strain relief cord connector

Product Description

The ABB 2536 is a liquidtight strain relief cord connector designed to connect flexible cord or power cable to a box or enclosure, providing adequate strain relief. It is a 3/4 inch straight connector made of malleable iron with a cord range of 0.750 to 0.875 inches. Suitable for hazardous locations where general purpose equipment is specifically permitted by NEC 501-4(B).

• Meets Coast Guard CG293
• Suitable for use in hazardous locations where general purpose equipment is specifically permitted by NEC 501-4(b).
• Remove sufficient outer covering of cable to permit conductors to pass thru connector body.

Product Highlights

This liquidtight strain relief cord connector is ideal for connecting flexible cords in demanding environments, providing a secure and reliable connection.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 2536
• Country of Origin: CA - Canada

Technical Specifications

• Size: 3/4 in
• Type: Straight
• Material: Malleable Iron
• Standard: CSA,UL E13938
• Trade Size: 3/4 Inch
• Applications: Suitable for use in Hazardous Locations where General Purpose Equipment is Specifically Permitted by NEC 501-4(B)
• TC Connection: NPT
• Thread Length: 15.8 mm
• Temperature Rating: 105 degrees C
• Accepted Cable Diameter: 0.750-0.880 in
• Application: Used to connect flexible cord or power cable to a box or enclosure and provide adequate strain relief
• Brand: T&B Fittings by ABB
• Bushing Material: Neoprene
• Manufacturer Part Number: 2536
• Protection Class: Gland, Cable
• Series: MSG Series
• Thread Size: NPT 3/4 in
• Thread Type: Hub Threaded
• Bend: 0
