Abb 2524 cable gland 1/2 inches straight general purpose cable connector - cord range: .500 - .625

Product Description

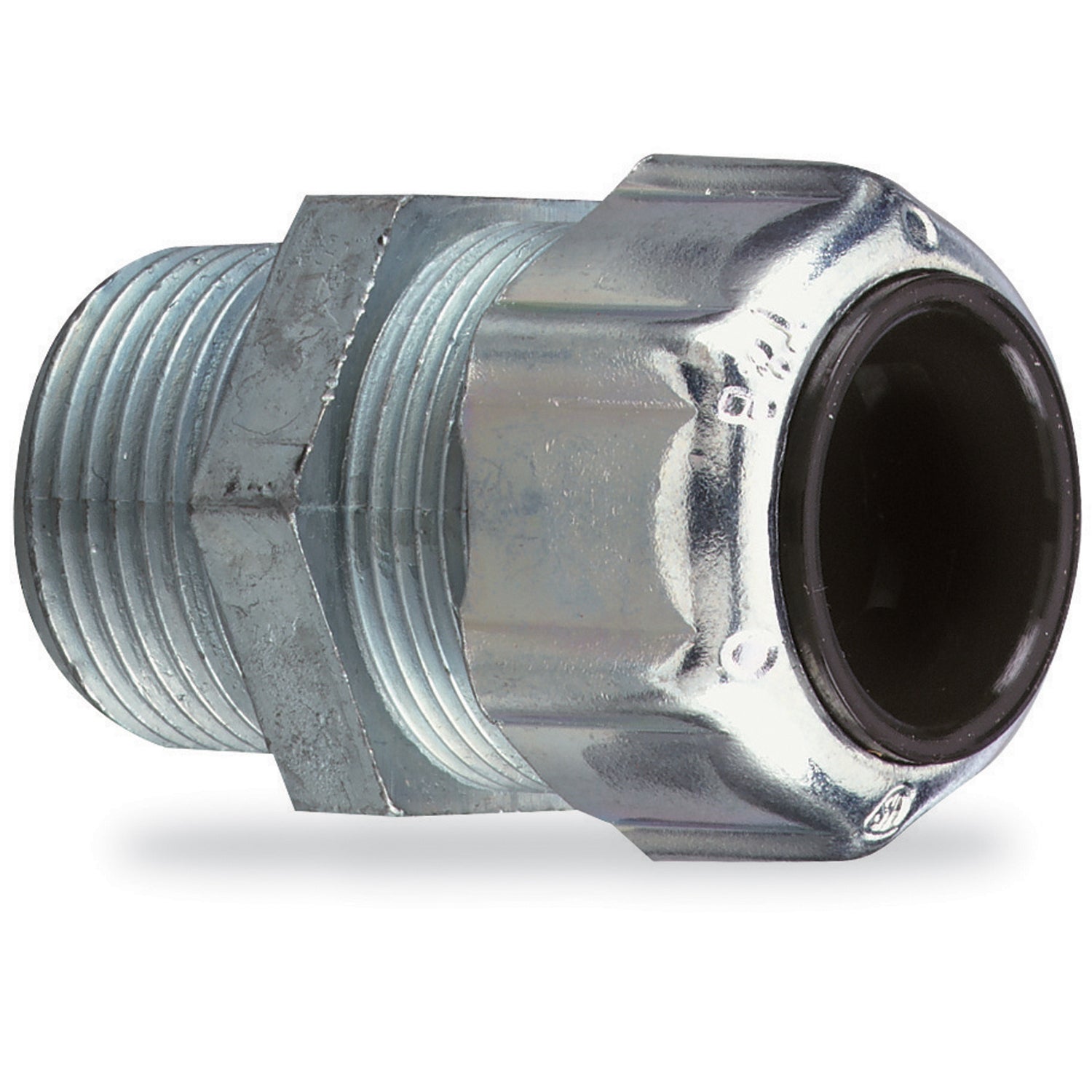

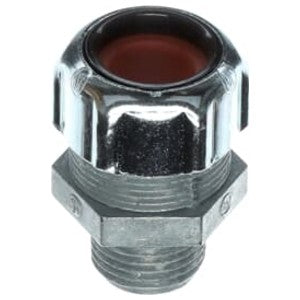

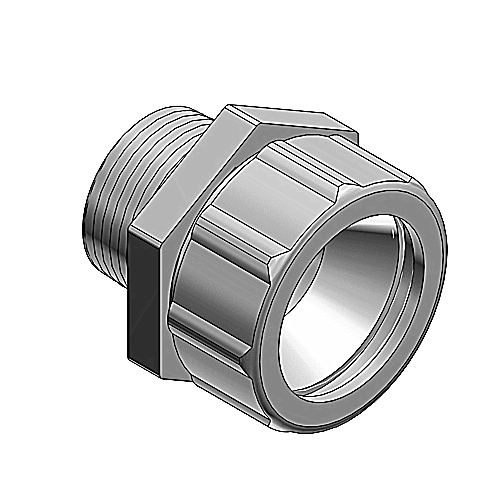

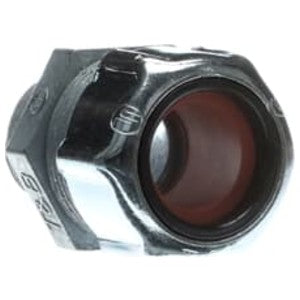

The ABB 2524 is a liquidtight strain relief cord connector. This straight connector is 1/2 inch and accommodates a cord range of 0.500 to 0.625 inches. Constructed from die-cast zinc, it provides a secure connection for flexible cords or power cables to boxes or enclosures, offering strain relief.

• Meets Coast Guard CG293
• Neoprene bushing makes liquid tight installation, applies pressure against cable the full length of bushing
• 5/8 in L thread

Product Highlights

This zinc die-cast connector is suitable for hazardous locations where general purpose equipment is permitted by NEC 501-4(B).

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 2524
• Country of Origin: CA - Canada

Technical Specifications

• Size: 1/2 Inch
• Type: Straight
• Material: Zinc Die Cast
• Trade Size: 1/2 Inch
• Thread Type: NPT
• Applications: Suitable for use in Hazardous Locations where General Purpose Equipment is Specifically Permitted by NEC 501-4(B)
• TC Connection: NPT
• Thread Length: 15.875 mm
• Temperature Rating: 105 degrees C
• Operating Temperature: 0 To 105 degrees C
• Accepted Cable Diameter: 0.500-0.625 in
• Application: Used to connect flexible cord or power cable to a box or enclosure and provide adequate strain relief
• Brand: T&B Fittings by ABB
• Bushing Material: Neoprene
• Cable Size: 0.500 to 0.625 in.
• Diameter: 1.375 in
• Family Name: T&B Cord Fittings
• Manufacturer Part Number: 2524
• Overall Length: 1.750 in
• Protection Class: Gland, Cable
• Series: MSG Series
• Thread Size: NPT 1/2 in
• UPC Code: 786210025247
• Cable Openings: 1/2 to 5/8 in
• Finish: Zinc Plated
• Cable Type: S/SO
• Connection Type: Thread
• ECCN: EAR99
• UNSPSC: 39121431
• Temp. Rating: 105°C
