Product Description

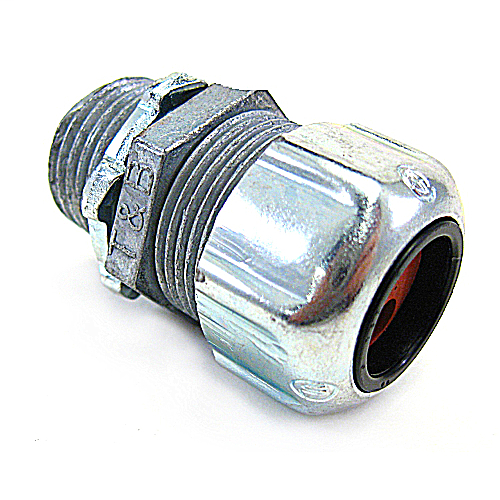

The ABB 2520-2 is a Thomas & Betts 1/2 inch straight general purpose cable gland and strain relief cord connector. It features a multi-hole design with two holes suitable for cord diameter ranging from zero point two one zero inches to zero point two three zero inches. Made from steel and zinc plated, this connector is designed to ensure a secure and durable connection in various electrical applications.
- Multi-Hole Cord Connector with Two Holes
- Hub Size of One Half Inch
- Cord Diameter Compatibility: Zero Point Two One to Zero Point Two Three Inches
Product Highlights
This cord connector is ideal for environments where multiple cables need to be run into an enclosure with limited space. Its threaded type connection allows for ease of installation.
Product Information
Standard Information
-
Manufacturer: Thomas & Betts Co
-
Brand: ABB
Technical Specifications
-
Trade Size: 1/2 inch
-
Type: Straight, Multi-Hole
-
Material: Steel
-
Finish: Zinc Plated
-
Temperature Rating: 105 degrees C
-
Thread Type: NPT
-
Number of Conductors: 2
-
Dimensions: 1.687 inches L x 1.125 inches W
-
UL File Number: E13938
