Abb 2520 1/2 inches Straight General Purpose Cable Gland / Strain Relief Cord Connector - Cord Range: .125 - .250

Product Description

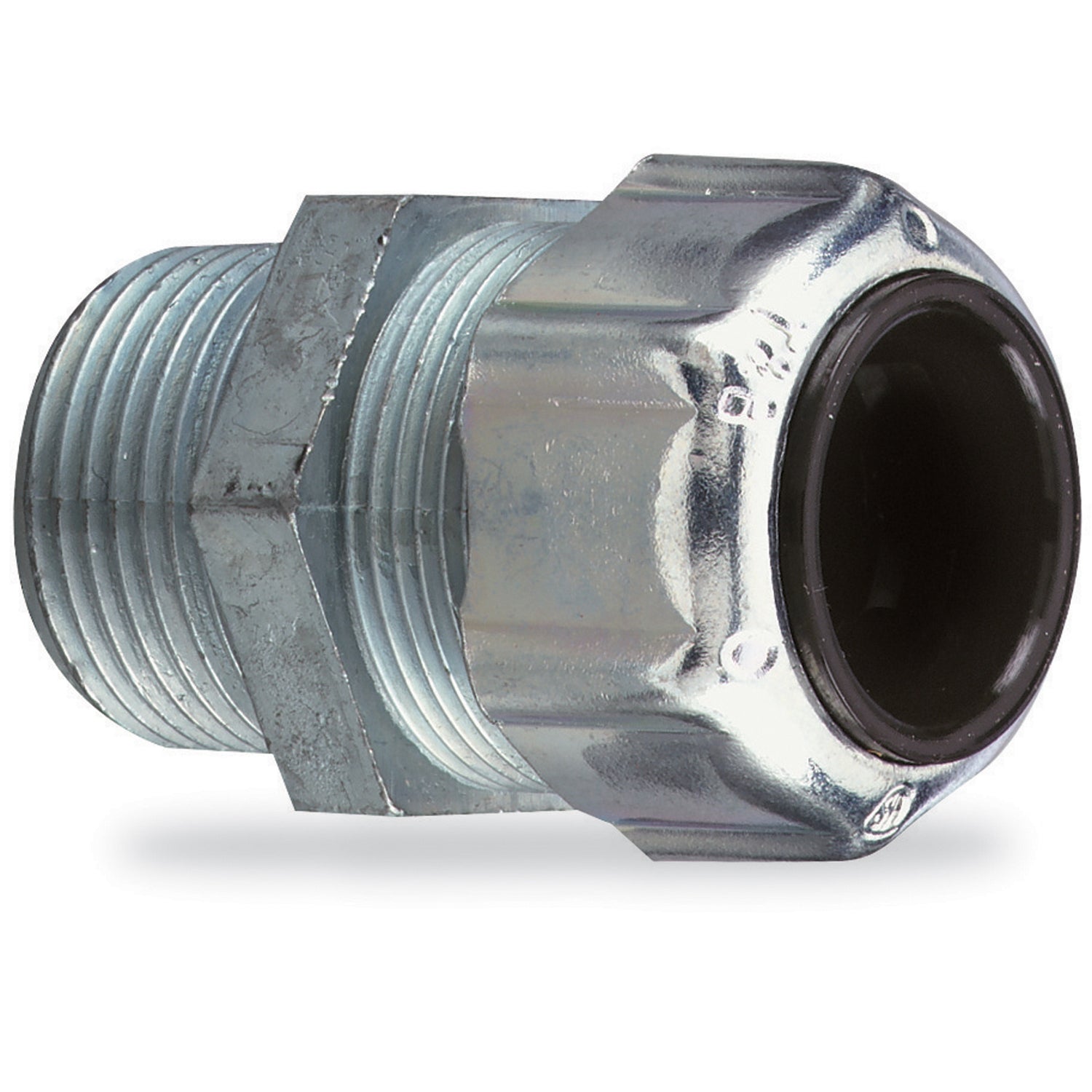

The ABB 2520 is a liquidtight strain relief cord connector. This straight connector is 1/2 inch and accommodates a cord range of 0.125 to 0.250 inches. Constructed from die-cast zinc, it is suitable for hazardous locations where general purpose equipment is permitted by NEC 501-4(B).

• Suitable for use in hazardous locations where general purpose equipment is specifically permitted by NEC 501-4(b).
• Meets Coast Guard CG293
• Neoprene bushing makes liquid tight installation, applies pressure against cable the full length of bushing

Product Highlights

Liquidtight strain relief cord connector with a 1/2 inch straight design, made from die-cast zinc, and suitable for hazardous locations.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 2520
• Country of Origin: CA - Canada

Technical Specifications

• Size: 1/2 in
• Type: Straight
• Material: Zinc Die Cast
• Standard: CSA,UL E13938
• Trade Size: 1/2 Inch
• Applications: Suitable for use in Hazardous Locations where General Purpose Equipment is Specifically Permitted by NEC 501-4(B)
• TC Connection: NPT
• Thread Length: 15.8 mm
• Temperature Rating: 105 degrees C
• Accepted Cable Diameter: 0.125-0.250 in
• Application: Used to connect flexible cord or power cable to a box or enclosure and provide adequate strain relief
• Brand: T&B Fittings by ABB
• Bushing Material: Neoprene
• Clamping Range: 0.125 to 0.250 in.
• Family Name: T&B Cord Fittings
• Manufacturer Part Number: 2520
• Overall Length: 1.125 in
• Protection Class: Gland, Cable
• Series: MSG Series
• Thread Size: NPT 1/2 in
• Cable Openings: 1/8 to 1/4 in
• Finish: Zinc Plated
• Cable Type: S/SO
• Connection Type: Thread
• ECCN: EAR99
• Bend: 0
• Temp. Rating: 105°C
