ABB 2270 T&B 1/2 90D WT CORD CONN

Product Description

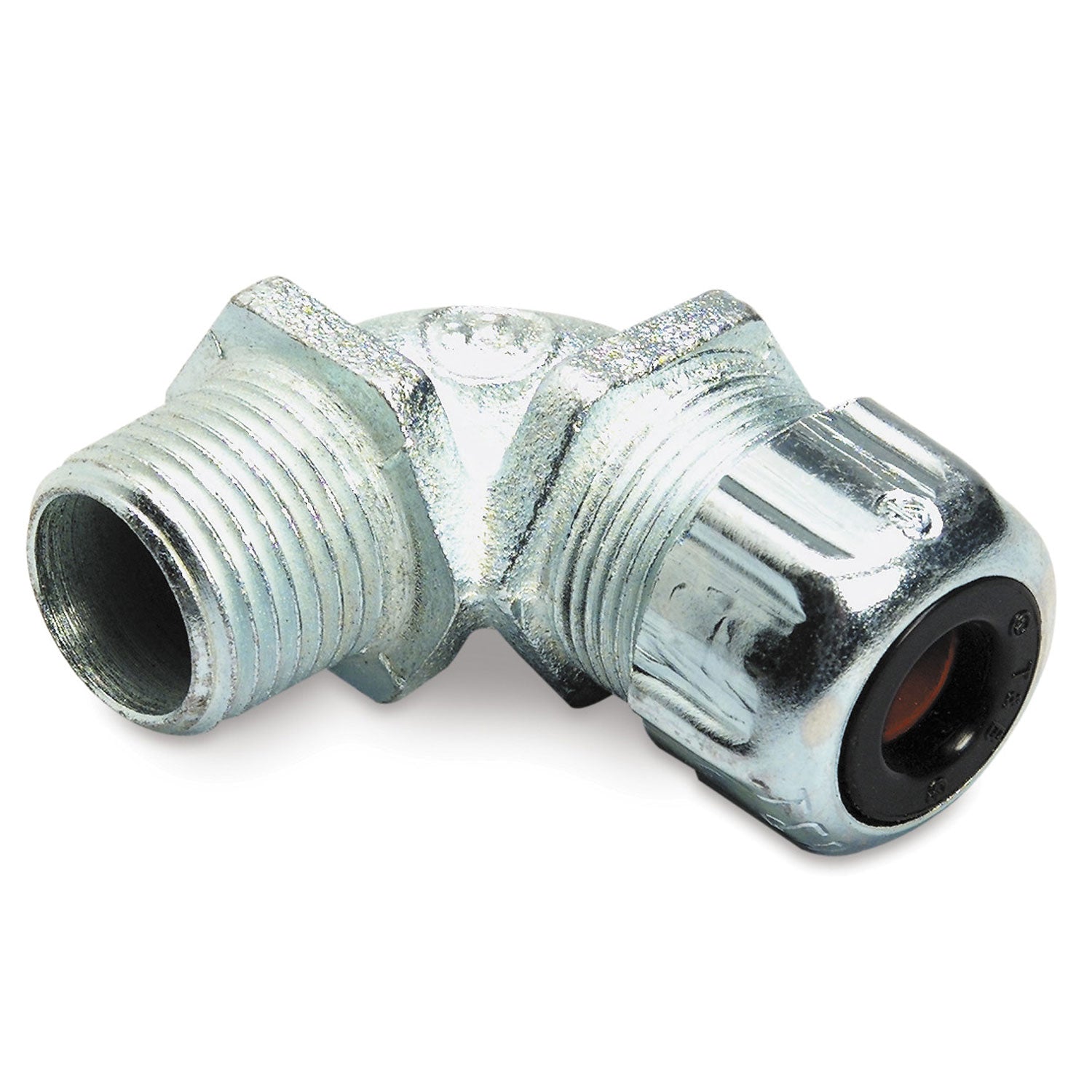

The ABB Cord Connector 2270 is a liquidtight strain relief connector designed for use in hazardous locations. This product is constructed from malleable iron and is coated with zinc to resist corrosion. It features a trade size of 1/2 inch and can accommodate cable openings ranging from 0.45 to 0.56 inches. The connector supports various cable types including S, SO, SV, ST, STD, SJ, SJO, SJT, SJTO, and SVD. It has a threaded connection and can bend at a 90-degree angle.

• Liquidtight strain relief design
• Suitable for multiple cable types
• Rated for hazardous locations

Product Highlights

This connector is suitable for hazardous locations where general purpose equipment is permitted by NEC 501-4(B). It meets Coast Guard standards and can operate at a maximum temperature of one hundred five degrees Celsius.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• UPC: 78621002270

Technical Specifications

• Application: For hazardous locations
• Cable Openings: 0.45 to 0.56 inches
• Cable Type: S/SO/SV/ST/STD/SJ/SJO/SJT/SJTO/SVD
• Connection Type: Thread
• Dimensions: 1-1/8 inches L x 1-23/32 inches W
• Finish: Zinc Plated
• Material: Malleable Iron
• Temperature Rating: 105 degrees Celsius
