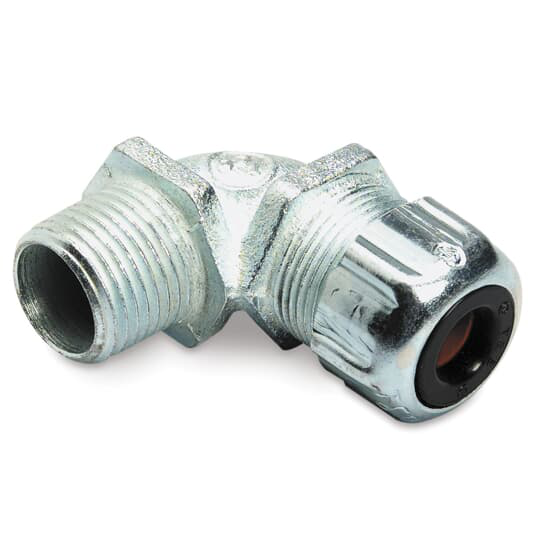

ABB 2268 Thomas & Betts 1/2 90 Degree Liquidtight Strain Relief Cord Connector

Product Description

The ABB 2268 is a Thomas & Betts liquidtight strain relief cord connector. It features a half-inch trade size and a 90-degree bend, making it suitable for various electrical applications. This connector is used to secure and strain relief cables with a range from one-quarter to three-eighths of an inch. The construction material is malleable iron, and it meets various safety standards.

• Suitable for use in hazardous locations according to NEC 501-4(b).
• Meets Coast Guard regulations with CG293 approval.
• Temperature rating of one hundred five degrees Celsius.

Product Highlights

Designed for effective cable management, the ABB 2268 cord connector provides robust strain relief and electrical safety.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Thomas & Betts Co

Technical Specifications

• MPN: 2268
• Trade Size: 1/2 inch
• Type: Liquidtight strain relief
• Material: Malleable iron
• Temperature Rating: 105 degrees C
• Thread Length: 15.87 mm
• Standards/Approvals: Coast Guard CG293, CSA, UL E13938
• Dimensions: 1-1/8 inches long x 1-23/32 inches wide
• Cable Openings: 1/4 to 3/8 inches
• Connection Type: NPT
