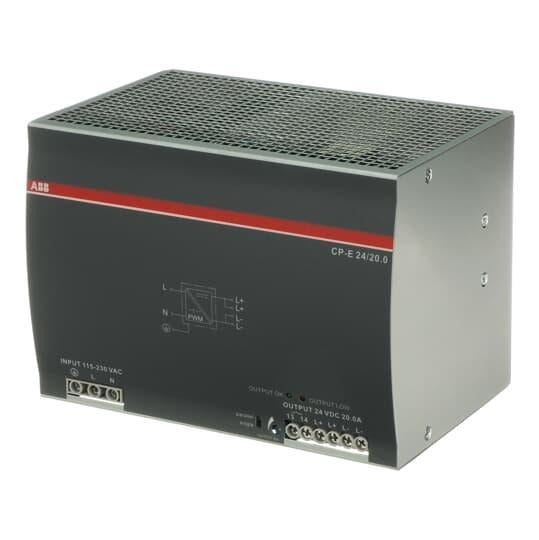

Abb 1svr427036r0000 480W 24VDC Switch Mode Power Supply

Product Description

The ABB 1svr427036r0000 is a switch mode power supply in the CP-E series, designed for industrial control panel and automation applications. It accepts a wide-range AC input of 90 to 264 volts AC or 120 to 375 volts DC, and delivers a regulated 24 volts DC output at up to 20 amps, with a total output power of 480 watts. The metal case construction and DIN rail mounting make it well-suited for installation inside electrical enclosures and control cabinets. Licensed electricians and automation technicians are the primary installers of this class of power supply.

This power supply is used in industrial and commercial automation systems where a reliable, high-capacity 24-volt DC source is required. Typical applications include powering PLCs, relays, sensors, and other 24-volt DC control components mounted on DIN rail assemblies within electrical panels. The wide AC input voltage range makes it suitable for use across different regional supply voltages and facility power conditions. Its 480-watt capacity supports demanding multi-device loads common in larger control systems.

Key Features

• Switch mode design with 480 watts output power and 20-amp continuous current at 24 volts DC
• Wide-range input accepts 90 to 264 volts AC or 120 to 375 volts DC
• DIN rail mounting for direct integration into standard control enclosures
• Metal case construction for durability in industrial environments
• Operating frequency range of 47 to 63 Hz accommodates both 50 Hz and 60 Hz supply systems

Compatibility

Designed as an OEM-style replacement or direct-fit unit for industrial control systems requiring a DIN rail-mounted 24-volt DC switch mode power supply in the ABB CP-E series.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements and local electrical codes. Disconnect and lock out all power sources before working inside the control enclosure. The unit mounts on standard DIN rail and should be sized with appropriate upstream overcurrent protection. Do not exceed the rated input voltage or output current limits stated on the unit label.
