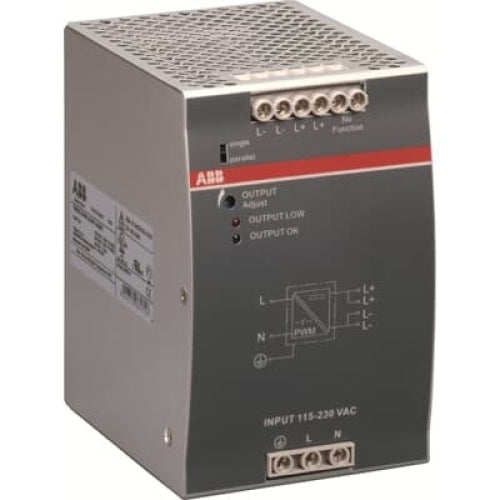

Abb 1SVR427034R2000 CP-E 48/5.0 Power Supply 48 VDC/5 A

Product Description

The ABB 1SVR427034R2000 CP-E 48/5.0 power supply offers output voltages from 5 V DC to 48 V DC at output currents of 0.625 A to 20 A. This primary switch mode power supply features a wide range input of 90-132 V AC, 180-264 V AC, and 210-375 V DC. It has a rated output power of 240 W and an adjustable output voltage within 47 to 56 V DC.

• Adjustable output voltages
• High efficiency of up to 90 %
• Open-circuit, overload and short-circuit protection

Product Highlights

The CP-E range power supply has high thermal efficiency, corresponding to low power and heat dissipation, allowing operation without forced cooling.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 1SVR427034R2000
• Country of Origin: Unknown

Technical Specifications

• UNSPSC Code: 32150000
• Depth: 123.6 mm
• Width: 83 mm
• Height: 123.6 mm
• IP Rating: IP20
• Standards: ANSI/ISA-12.12, CAN/CSA C22.2 No.107.1, CAN/CSA C22.2 No.213, CAN/CSA C22.2 No.60950, IEC/EN 63000, IEC 60950-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508, UL 60950
• Power Rating: 240 W
• Input Voltage: 90 to 132 V AC, 180 to 264 V AC, 210 to 375 V DC
• Mounting Type: TH35-15 (35 x 15 mm Mounting Rail), TH35-7.5 (35 x 7.5 mm Mounting Rail)
• Output Current: 5 A
• Output Voltage: 48 V DC
• Phase - Electrical: 1
• Category: Power Supplies
• Product Main Type: CP-E
• Number of phases: 1
• Output Power: 240 W
• Function: Switch mode power supply
• Rated Input Voltage: 115 / 230 V AC
• Rated Frequency Limits: 47 ... 63 Hz
• Characteristic of Output: U/I characteristic curve
• Rated Output Power: 240 W
• Rated Output Voltage: 48 V DC
• Rated Output Current: 5 A
• Rated Insulation Voltage: Input Circuit 3 V Output Circuit 3 V Input Circuit 2 V PE 2 V
• Degree of Protection: Housing Terminals IP20 IP20
• Pollution Degree: 2
• Connecting Capacity Input Circuit: Flexible with Ferrule 0.2 ... 4 mm² Rigid 0.2 ... 6 mm²
• Connecting Capacity Output Circuit: Flexible with Ferrule 0.2 ... 4 mm² Rigid 0.2 ... 6 mm²
• Tightening Torque: Input Circuit 1 N-m Output Circuit 0.62 N-m
• Wire Stripping Length: Input Circuit 8 mm Output Circuit 8 mm
• Minimum Mounting Distance: Electrical Conductive Board, Horizontal 25 mm Electrical Conductive Board, Vertical 25 mm Other Device Same Type, Horizontal 25 mm Other Device Same Type, Vertical 25 mm
• Mounting Position: Position 1
• Mounting on DIN Rail: TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
• Ambient Air Temperature: Operation -40 ... +70 °C Storage -40 ... +85 °C
• RoHS Status: Following EU Directive 2011/65/EU
• Connecting Capacity Input Circuit UL/CSA: Rigid 24-10 AWG
• Connecting Capacity Output Circuit UL/CSA: Rigid 24-10 AWG
• Tightening Torque UL/CSA: Input Circuit 9 in-lb Output Circuit 5.5 in-lb
• Object Classification Code: T
• ETIM 4: EC002540 - DC-power supply
• ETIM 5.0: EC002540 - DC-power supply
• ETIM 6.0: EC002540 - DC-power supply
• ETIM 7: EC002540 - DC-power supply
• Power Supply Voltage Output: 48 VDC
• Power Supply Amperage Output: 5 Amp
• Power Supply Watts (Nominal Power): 240 Watt
• Component: Power Supply
• Manufacturer: ABB
• Power Supply Voltage Input: 180 - 264 VAC
