Abb 1SVR405621R0100 Cr-U024Ac2L Dpdt W/Led 24Vac

Product Description

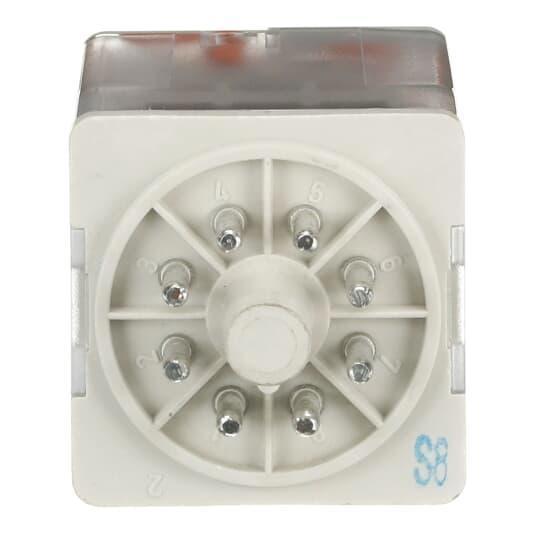

The ABB 1SVR405621R0100 CR-U024AC2L is a pluggable interface relay with LED. This relay features 2 c/o (SPDT) contacts and a rated control supply voltage of 24V AC. It is designed for various industrial applications. The integrated LED and test button allow for easy testing and commissioning.

• Cadmium-free contact material
• Integrated test button for manual actuation
• Standard universal relays with mechanical status indication

Product Highlights

Pluggable interface relay with 24VAC coil voltage and LED indicator for easy testing and commissioning.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 1SVR405621R0100
• Country of Origin: Dominican Republic

Technical Specifications

• Category: Interface Relays & Optocouplers
• Function: Pluggable universal interface relay CR-U
• Rated Control Supply Voltage: 24 V AC
• Output Signal: 250 V / 10 A
• Output: 2 c/o (SPDT) contacts
• Contact material: silver-nickel alloy (AgNi)
• Product Main Type: CR-U
• Sub-Function: Relay with built in LED
• RoHS Status: Following EU Directive 2011/65/EU
• Object Classification Code: K
• ETIM 4: EC001437 - Switching relay
• ETIM 5.0: EC001437 - Switching relay
• ETIM 6.0: EC001437 - Switching relay
• ETIM 7: EC001437 - Switching relay
• eClass: 7.0 27371601
• Product Net Width: 35 mm
• Product Net Height: 54.4 mm
• Product Net Depth / Length: 35 mm
• Product Net Weight: 0.083 kg
• Brand: ABB
• Coil Voltage: 24 VAC
• Contact Current Rating: 10 A
• Contact Form: DPDT
• Contact Voltage Rating: 300 VAC
• Control Voltage: 24 V
• Current Rating: 10 A
• Manufacturer Part Number: 1SVR405621R0100
• Mounting Type: Socket Mount
• Primary Type: Power Relays
• Relay Type: Interface
• Series: CR-U Series
• Termination: Blade
• Voltage Rating: 250 V
• Contact Rating: 250 V, 10 A VAC
• Number Of Poles: 2
• Amperage Rating: 10 A
• Display Type: LED
• Enclosure Type: IP40
• Temperature Rating: -40 to 70 deg C
• Frequency Rating: 50/60 Hz
• Power Rating: 2.5/2.8 VA
• Type: Pluggable Universal
