Abb 1SVR405611R1100 CR-M024DC2L PLU 24VDC

Product Description

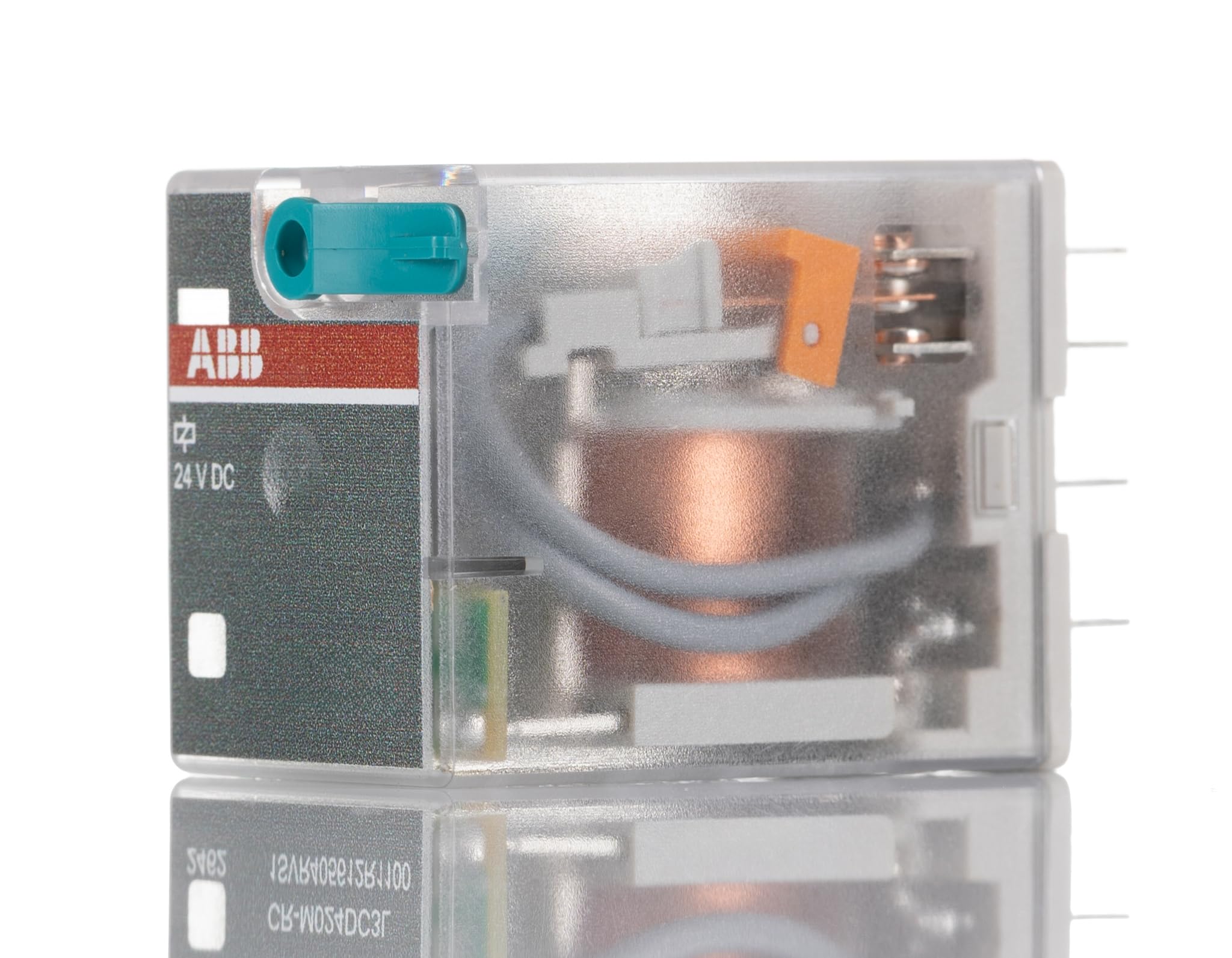

The ABB 1SVR405611R1100 CR-M024DC2L PLU is a plugin control relay with a 24 VDC rated control supply voltage. It features SPDT (2 c/o) contacts, an LED indicator, and a contact rating of 250 V, 12 A. This miniature relay is suitable for electrical isolation, amplification, and signal matching between electronic controls.

• Plugin control relay
• 24 VDC rated control supply voltage
• SPDT (2 c/o) contacts

Product Highlights

Plugin control relay with SPDT contacts, LED indicator, and a 250 V, 12 A contact rating.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 1SVR405611R1100
• Country of Origin: US

Technical Specifications

• GTiN: 04013614497230
• Type: Miniature
• Brand: ABB
• Voltage: 250 Volt
• Amperage: 12 Amp
• Sub Brand: CR-M
• Resistance: 640 ?
• 12-Digit UPC: 662019362649
• Applications: For Electrical Isolation, Amplification and Signal Matching Between the Electronic Controlling
• Power Rating: 0.9 W
• Mounting Type: 8 Blade Socket
• Number of Poles: 1 Pole
• Contact Material: Silver Nickel
• Operating Cycles: 20000000
• Temperature Rating: -40 to 70 degrees C
• Contact Configuration: SPDT - 2 CO
• Manufacturer: ABB
• MPN: 1SVR405611R1100
• Product Type: ELECTRONIC_COMPONENT
• Category: Business & Industrial
• Function: Pluggable miniature interface relay CR-M
• Rated Control Supply Voltage: 24 V DC
• Output Signal: 250 V / 12 A
• Output: 2 c/o (SPDT) contacts
• Contact material: silver-nickel alloy (AgNi)
• Product Main Type: CR-M
• Sub-Function: Relay with built in LED
• RoHS Status: Following EU Directive 2011/65/EU
• Object Classification Code: K
• ETIM 4: EC001437 - Switching relay
• ETIM 5.0: EC001437 - Switching relay
• ETIM 6.0: EC001437 - Switching relay
• ETIM 7: EC001437 - Switching relay
• eClass: 7.0 27371601
• Product Net Width: 21.2 mm
• Product Net Height: 35.6 mm
• Product Net Depth / Length: 27.5 mm
• Product Net Weight: 0.033kg
• Product Series: CR-M
• Family Series: ABB Relays, CR-M Series
• Description: Relay, DPDT, 12A, 24VDC, w/LED, CR-M024DC2L
• Coil Voltage: 24 VDC
• Contacts: DPDT
• Mounting: Plug In
• Termination: .110 " Flat Blade
• Enclosure: Plastic
• Status Indicator: Yes
• Nominal Coil Voltage: 24 VDC
• Safety Guided: No
• Approvals: CCC, CSA, cUR, UR, VDE
• Model: 1SVR405611R1100
