Abb 1SNA645571R0000 Interface Relay RBR121-24VDC

Product Description

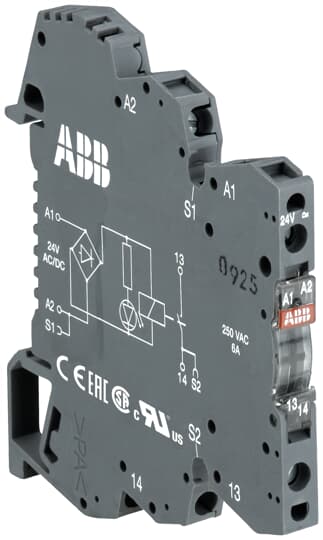

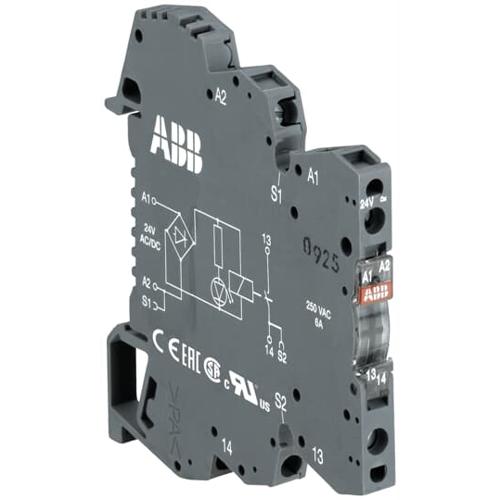

The ABB 1SNA645571R0000 interface relay RBR121-24VDC is a boxed interface relay with spring terminals, designed for snap-on mounting onto a DIN Rail. It features a SPDT contact form and a coil voltage of 24 VDC. The relay is soldered into the device housing, ensuring high resistance against vibration.

• Rated Control Supply Voltage: 24 V DC
• Output Signal: 5 ... 250VAC / 60mA ... 6A
• Contact Current Rating: 6 A

Product Highlights

The ABB 1SNA645571R0000 interface relay is ideal for various industrial applications requiring reliable signal switching and DIN rail mounting.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 1SNA645571R0000

Technical Specifications

• Brand: ABB
• MPN: 1SNA645571R0000
• Condition: New
• Category: Interface Relays & Optocouplers
• Function: Boxed interface relay R600
• Rated Control Supply Voltage: 24 V DC
• Output Signal: 5 ... 250VAC / 60mA ... 6A
• Terminal Type: Spring Terminals
• Output: 1 c/o (SPDT) contact
• Contact material: silver-tin-oxide (AgSnO2)
• Product Main Type: R600
• Sub-Function: Relay with built in LED
• RoHS Status: Following EU Directive 2011/65/EU
• Object Classification Code: K
• ETIM 4: EC001437 - Switching relay
• ETIM 5.0: EC001437 - Switching relay
• ETIM 6.0: EC001437 - Switching relay
• ETIM 7: EC001437 - Switching relay
• eClass: 7.0 27371601
• Product Net Width: 6 mm
• Product Net Height: 67.5 mm
• Product Net Depth / Length: 75 mm
• Coil Voltage: 24 VDC
• Contact Current Rating: 6 A
• Contact Form: SPDT
• Contact Voltage Rating: 300 VAC
• Control Voltage: 24 V
• Current Rating: 6 A
• Mounting Type: DIN Rail Mount
• Primary Type: Power Relays
• Relay Type: Interface
• Series: R600 Series
• Termination: Spring Cage
• Voltage Rating: 250 V
• Relay Throws: Double Throw
• Coil Voltage Rating: 24 VDC
• Relay Poles: Single Pole
• Relay Load Voltage AC Rating: 5 - 250 VAC
• Relay Mounting: Spring Terminals
• Manufacturer: ABB
• Component: Interface Relay
