Abb 1LE23212CB216AA3 Motor, 30, 1800, Sd100, 230/460, 286t, Np

Product Description

The ABB 1LE23212CB216AA3 motor features Class F insulation with a Class B temperature rise and is certified for Division 2, Class I and Class II locations. It is compatible with inverter drives per NEMA MG1 Part 31.4.4.2 and offers NEMA Premium efficiency to reduce energy consumption. Built with a durable cast iron frame, the motor ensures long-lasting operation.

• Class F insulation system for enhanced thermal durability
• Class B temperature rise for dependable continuous operation
• Bidirectional cooling fan allows flexible installation orientation

Product Highlights

The ABB SD100 motor is suitable for pumps, fans, compressors, and industries such as petrochemical, oil & gas, paper mills, and water and wastewater.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 1LE23212CB216AA3
• Country of Origin: MEXICO

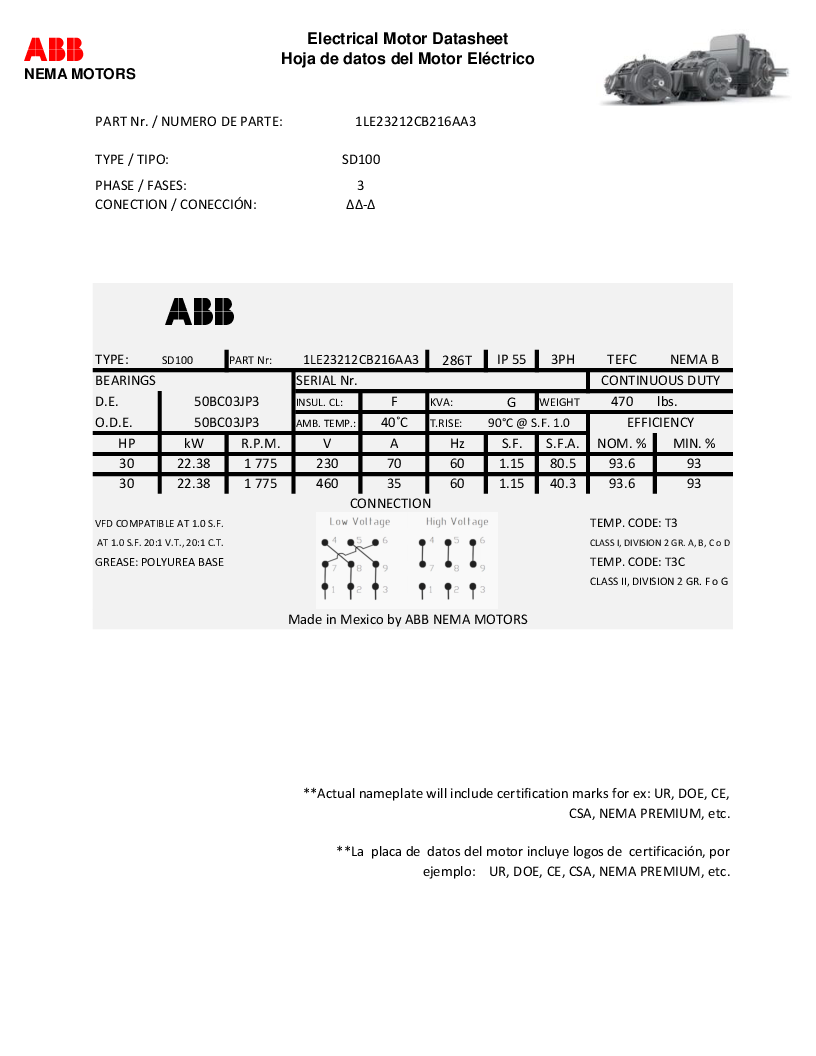

Technical Specifications

• Catalog Number: 1LE23212CB216AA3
• Enclosure: TEFC
• Frame: 286T
• Frame Material: Cast Iron
• Frequency: 60 Hz
• Phase: 3
• Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
• Voltage @ Frequency: 460 V @ 60 HZ
• Haz Area Class and Group: CLI GP A,B,C,D; CLII GP F,G
• Haz Area Division: Division II
• Agency Approvals: NONE
• Ambient Temperature: 40 00b0C
• Auxiliary Box: NO AUXILLARY BOX
• Auxiliary Box Lead Termination: None
• Base Indicator: Rigid
• Bearing Grease Type: Polyrex EM
• Blower: None
• CE: CE
• Constant Torque Speed Range: 20:1
• Current @ Voltage: 70 A @ 230 V
• Design Code: B
• Drip Cover: No Drip Cover
• Duty Rating: CONT
• Efficiency @ 100% Load: 93.6 %
• Efficiency @ 50% Load: 93.9 %
• Efficiency @ 75% Load: 94.1 %
• Electrically Isolated Bearing: Not Electrically Isolated
• Feedback Device: NO FEEDBACK
• High Voltage Full Load Amps: 35.0 a
• Front Face Code: Standard
• Heater Indicator: No Heater
• Insulation Class: F
• Inverter Code: Inverter Ready
• IP Rating: IP55
• KVA Code: G
• Lifting Lugs: Standard Lifting Lugs
• Locked Bearing Indicator: LOCKED
• MLFB: 1LE23212CB216AA3
• Motor Lead Exit: Conduit Box
• Motor Lead Termination: Flying Leads
• Mounting Arrangement: F1
• No Load Current: 12.0 a
• Number of Poles: 4
• Overall Length: 29.40 IN
• Power Factor: 85
• Product Type: SD100
• Pulley End Bearing Type: Ball
• Pulley Face Code: Standard
• Rodent Screen: NO RODENT SCREENS
• RoHS Status: ROHS COMPLIANT
• Rotor Inertia: 4.80000 lb-ft2
• Service Factor: 1.15
• Shaft Diameter: 1.875 IN
• Shaft Extension Location: Pulley End
• Shaft Ground Indicator: No Shaft Grounding
• Shaft Rotation: Reversible
• Speed: 1476 rpm
• Speed Code: Single Speed
• Motor Standards: NEMA
• Starting Current: 218.0 a
• Starting Method: Direct on line
• Thermal Device - Bearing: None
• Thermal Device - Winding: None
• Vibration Sensor Indicator: No Vibration Sensor
• Winding Thermal 1: NOT APPLICABLE
• Winding Thermal 1 Location: 00
• Winding Thermal 2: NOT APPLICABLE
• Winding Thermal 2 Location: 00
• Haz Area Temp Code: T3
• Brand: ABB NEMA
• Manufacturer Part #: 1LE23212CB216AA3
• Rated Motor Output Power: 30 HP
• Rated Motor Speed: 1775 RPM
• Rated Motor Voltage: 230V, 460V
• Poles: 4
• Nominal Efficiency: 93.6
• Mounting: Rigid
• Number of Speeds: 1 Speed
• Approximate Weight: 469.585lb
• Double Drilled: No
• NEMA Design: B
• Degree of Protection (IP): IP55
• Conduit Box Location: F1
• Removable Feet: No
• DE Bearing: None
• NDE Bearing: None
• Greaseable: No
• Hazardous Locations: CSA Certified
