Abb 1LE23212BB214AA3 Motor, 20 HP, 1800 RPM, Sd100, 230/460, 256T, Np

Product Description

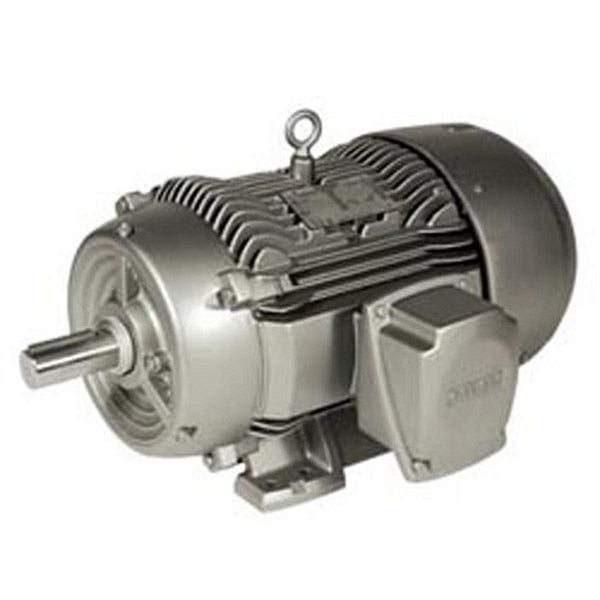

The ABB 1LE23212BB214AA3 motor is a severe duty motor outputting 20 HP at 1800 RPM. Designed with a 256T frame, it supports 230/460 voltage. It is enclosed in a TEFC enclosure. This motor is ideal for use in pumps, fans, compressors and conveyors.

• Class F insulation system for enhanced thermal durability
• Class B temperature rise for dependable continuous operation
• Bidirectional cooling fan allows flexible installation orientation

Product Highlights

Severe duty motor with Class F insulation and bidirectional cooling fan, ideal for pumps, fans, compressors and conveyors.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 1LE23212BB214AA3
• Country of Origin: MEXICO

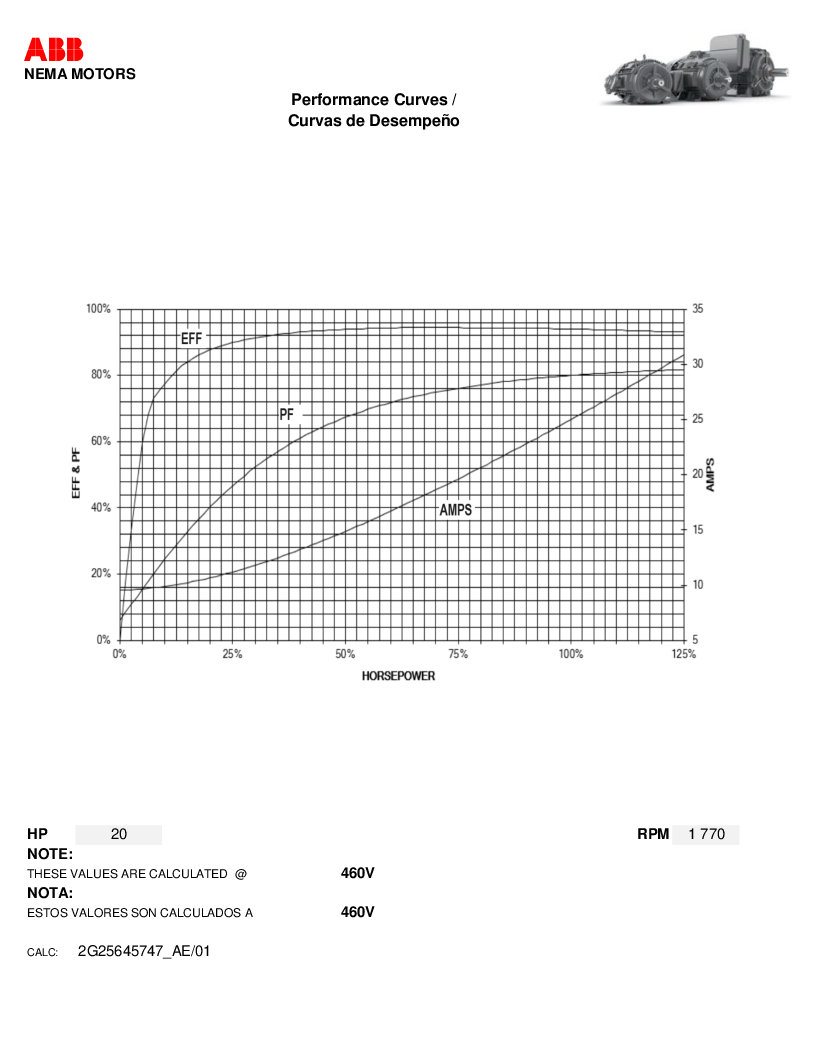

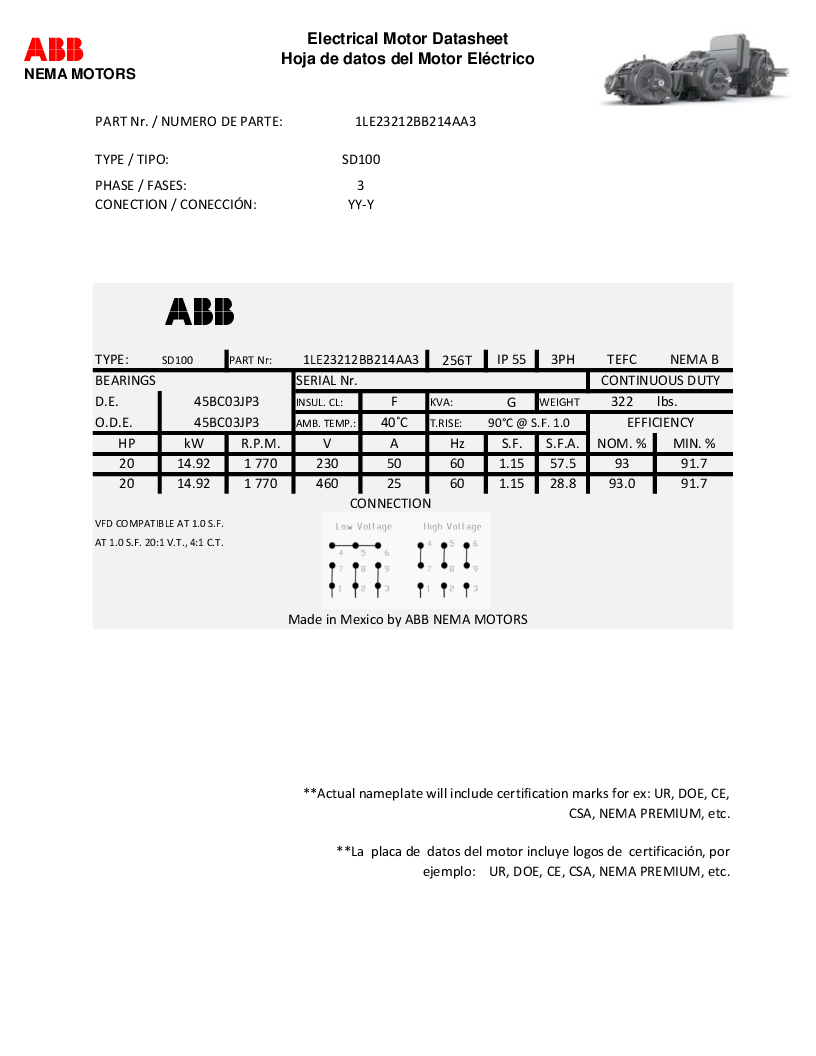

Technical Specifications

• Catalog Number: 1LE23212BB214AA3
• Enclosure: TEFC
• Frame: 256T
• Frame Material: Cast Iron
• Frequency: 50.00 Hz
• Output @ Frequency: 15 HP @ 50 HZ
• Phase: 3
• Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
• Voltage @ Frequency: 460 V @ 60 HZ
• Haz Area Class and Group: CLI GP A,B,C,D
• Haz Area Division: Division II
• Agency Approvals: NONE
• Ambient Temperature: 40 °C
• Auxiliary Box: NO AUXILLARY BOX
• Auxiliary Box Lead Termination: None
• Base Indicator: Rigid
• Bearing Grease Type: Polyrex EM
• Blower: None
• CE: CE
• Constant Torque Speed Range: 20:1
• Current @ Voltage: 50 A @ 230 V
• Design Code: B
• Drip Cover: No Drip Cover
• Duty Rating: CONT
• Efficiency @ 100% Load: 93.0 %
• Efficiency @ 50% Load: 93.1 %
• Efficiency @ 75% Load: 93.4 %
• Electrically Isolated Bearing: Not Electrically Isolated
• Feedback Device: NO FEEDBACK
• High Voltage Full Load Amps: 25.0 a
• Front Face Code: Standard
• Heater Indicator: No Heater
• Insulation Class: F
• Inverter Code: Inverter Ready
• IP Rating: IP55
• KVA Code: G
• Lifting Lugs: Standard Lifting Lugs
• Locked Bearing Indicator: LOCKED
• MLFB: 1LE23212BB214AA3
• Motor Lead Exit: Conduit Box
• Motor Lead Termination: Flying Leads
• Mounting Arrangement: F1
• No Load Current: 10.5 a
• Number of Poles: 4
• Overall Length: 25.80 IN
• Power Factor: 80.5
• Product Type: SD100
• Pulley End Bearing Type: Ball
• Pulley Face Code: Standard
• Rodent Screen: NO RODENT SCREENS
• RoHS Status: ROHS COMPLIANT
• Rotor Inertia: 2.06430 lb-ft2
• Service Factor: 1.15
• Shaft Diameter: 1.625 IN
• Shaft Extension Location: Pulley End
• Shaft Ground Indicator: No Shaft Grounding
• Shaft Rotation: Reversible
• Speed: 1475 rpm
• Speed Code: Single Speed
• Motor Standards: NEMA
• Starting Current: 145.0 a
• Starting Method: Direct on line
• Thermal Device - Bearing: None
• Thermal Device - Winding: None
• Vibration Sensor Indicator: No Vibration Sensor
• Winding Thermal 1: NOT APPLICABLE
• Winding Thermal 1 Location: 00
• Winding Thermal 2: NOT APPLICABLE
• Winding Thermal 2 Location: 00
• Haz Area Temp Code: T3
• Rated Motor Output Power: 20 HP
• Rated Motor Speed: 1770 RPM
• Rated Motor Voltage: 230V, 460V
• Nominal Efficiency: 93
• Nominal Power Factor: 80.5
• Number of Speeds: 1 Speed
• Approximate Weight: 321.875lb
• Double Drilled: No
• Degree of Protection (IP): IP55
• Duty: Continuous
• Conduit Box Location: F1
• Removable Feet: No
• DE Bearing: None
• NDE Bearing: None
• Grease Type: Polyrex EM
• Greaseable: No
• Hazardous Locations: CSA Certified
• Hertz: 60
• Mounting: Foot Mounted, Base
• Efficiency Full Load: 93%
