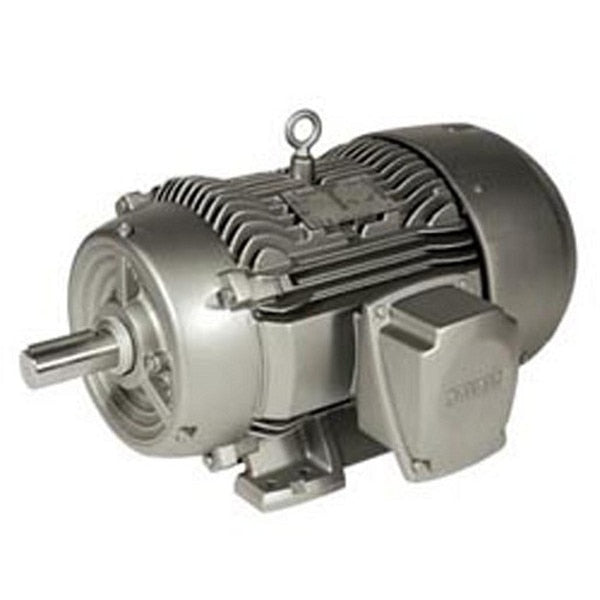

Abb 1LE23211CB114AA3 Motor, 3, 1800, Sd100, 230/460, 182T, Np

Product Description

The ABB 1LE23211CB114AA3 motor operates at 3 HP, 1800 RPM, and is designed for 230/460V power systems. Constructed with a cast iron frame and TEFC enclosure, this motor is suitable for severe applications. It features Class F insulation and is certified for Division 2, Class I and Class II locations.

• Cast Iron Frame, Conduit Box and Fan Cover
• Meets or Exceeds NEMA Premium Efficiencies
• High-strength C1045 Carbon Steel Shaft Material

Product Highlights

Premium efficient motor suitable for pumps, fans, compressors, and industries such as petrochemical, oil & gas, paper mills, and water and wastewater.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 1LE23211CB114AA3
• Country of Origin: MEXICO

Technical Specifications

• Catalog Number: 1LE23211CB114AA3
• Enclosure: TEFC
• Frame: 182T
• Frame Material: Cast Iron
• Frequency: 60 Hertz
• Output @ Frequency: 2 HP @ 50 HZ
• Phase: 3
• Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
• Voltage @ Frequency: 460 V @ 60 HZ
• Haz Area Class and Group: CLI GP A,B,C,D
• Haz Area Division: Division II
• Ambient Temperature: 40 0C
• Auxiliary Box: NO AUXILLARY BOX
• Auxiliary Box Lead Termination: None
• Base Indicator: Rigid
• Bearing Grease Type: Polyrex EM
• Blower: None
• CE: CE
• Constant Torque Speed Range: 20:1
• Current @ Voltage: 8 A @ 230 V
• Design Code: B
• Drip Cover: No Drip Cover
• Duty Rating: CONT
• Efficiency @ 100% Load: 89.5 %
• Efficiency @ 50% Load: 87.8 %
• Efficiency @ 75% Load: 89.4 %
• Electrically Isolated Bearing: Not Electrically Isolated
• Feedback Device: NO FEEDBACK
• High Voltage Full Load Amps: 4.0 a
• Front Face Code: Standard
• Heater Indicator: No Heater
• Insulation Class: F
• Inverter Code: Inverter Ready
• IP Rating: IP55
• KVA Code: K
• Lifting Lugs: Standard Lifting Lugs
• Locked Bearing Indicator: LOCKED
• MLFB: 1LE23211CB114AA3
• Motor Lead Exit: Conduit Box
• Motor Lead Termination: Flying Leads
• Mounting Arrangement: F1
• No Load Current: 2.1 a
• Number of Poles: 4
• Overall Length: 16.40 IN
• Power Factor: 78.5
• Product Type: SD100
• Pulley End Bearing Type: Ball
• Pulley Face Code: Standard
• Rodent Screen: NO RODENT SCREENS
• RoHS Status: ROHS COMPLIANT
• Rotor Inertia: 0.29550 lb-ft2
• Service Factor: 1.15
• Shaft Diameter: 1.125 IN
• Shaft Extension Location: Pulley End
• Shaft Ground Indicator: No Shaft Grounding
• Shaft Rotation: Reversible
• Speed: 1475 rpm
• Speed Code: Single Speed
• Motor Standards: NEMA
• Starting Current: 33.0 a
• Starting Method: Direct on line
• Thermal Device - Bearing: None
• Thermal Device - Winding: None
• Vibration Sensor Indicator: No Vibration Sensor
• Winding Thermal 1: NOT APPLICABLE
• Winding Thermal 1 Location: 00
• Winding Thermal 2: NOT APPLICABLE
• Winding Thermal 2 Location: 00
• Haz Area Temp Code: T3
• Brand: ABB NEMA
• Manufacturer Part #: 1LE23211CB114AA3
• Series: SD100 (Mill & Chem)
• Voltage: 230/460
• Mounting Design: Foot Mount
• Horsepower: 3 HP
• Sync RPM: 1800
• Hertz: 60 Hertz
• Mounting: Foot Mounted, Base
• Base to Center of Shaft: 4-1/2"
• Efficiency: 89.5% Full Load
• Rated Motor Output Power: 3 HP
• Rated Motor Speed: 1760 RPM
• Rated Motor Voltage: 230V, 460V
• Poles: 4
• Nominal Efficiency: 89.5
• Nominal Power Factor: 78.5
• Number of Speeds: 1 Speed
• Approximate Weight: 121.254lb
• Double Drilled: No
• Degree of Protection (IP): IP55
• Rotation: Reversible
• Duty: Continuous
• Conduit Box Location: F1
• Removable Feet: No
• DE Bearing: None
• NDE Bearing: None
• Greaseable: No
• Hazardous Locations: CSA Certified
