ABB 1HPS Blackburn 1HPS Split Bolt Connector Power 8 to 1 AWG ACSR/Solid/Stranded Aluminum/Copper Conductor

Product Description

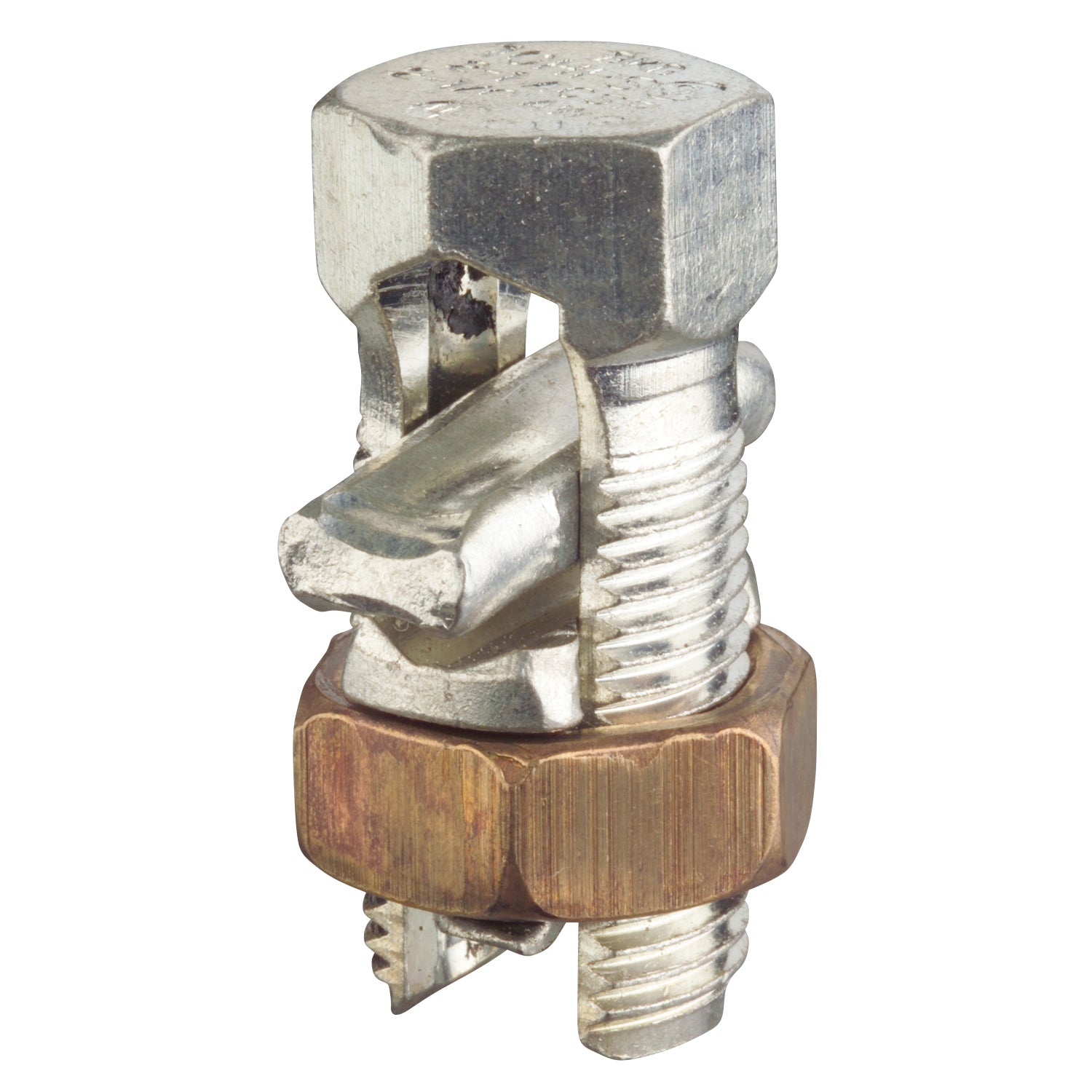

The ABB 1HPS Blackburn Split Bolt Connector is designed for electrical applications involving ACSR, solid, and stranded aluminum or copper conductors. This connector supports conductor sizes from eight to one AWG. It features an 11/16 inch by 1-5/8 inch bolt size and a split size of 0.33 inches. The connector is made from a copper alloy and electro-plated with tin for enhanced corrosion resistance.

• Supports ACSR, solid, and stranded conductors
• Electro-tin plated for corrosion resistance
• Designed for splicing, tapping, or terminating electrical connections

Product Highlights

This component is vital for secure and reliable electrical connections in power and grounding systems.

Product Information

Standard Information

• Manufacturer: Blackburn / Thomas & Betts
• Brand: ABB

Technical Specifications

• Type: Type HPS
• Conductor Size: 8 to 1 AWG
• Conductor Type: ACSR/Solid/Stranded Aluminum/Copper
• Bolt Size: 11/16 x 1-5/8 in
• Material: Copper Alloy
• Finish: Electro-Plated Tin
• Standards/Approvals: UL File No. E9809 | CSA Certified
• Application: For splicing, tapping, or terminating conductors in power and grounding electrical connections
