Product Description

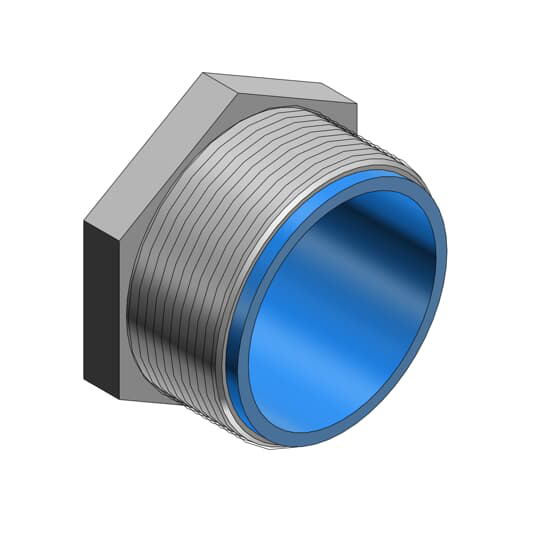

The ABB 1951 is a 4 inch chase nipple made of malleable iron with nylon insulation, designed for use with rigid and IMC conduit installations. This product allows for effective bush factory or field-punched holes in metal boxes and enclosures. It also provides a secure coupling solution for boxes positioned back-to-back.
- Constructed from durable malleable iron
- Application includes coupling boxes and protecting conductors
- Meets CSA and UL standards
Product Highlights
This chase nipple is suitable for applications requiring secure connections in electrical fittings. It serves as a reliable interface for conductors entering or leaving conduits at any angle.
Product Information
Standard Information
-
Catalog Number: 1951
-
Brand: ABB
Technical Specifications
-
Type: Chase Conduit Nipple
-
Material: Malleable Iron
-
Finish: Chromate Coated/Electro-Zinc Plated
-
Dimensions: 1-5/16 inches diameter x 4-5/8 inches length
-
Trade Size: 4 inches
-
Standard Approvals: ANSI C80.4, CSA C22.2 File No. 18.3, UL 514B
-
Applications: Suitable for rigid/IMC conduits
-
UPC: 78621001951
