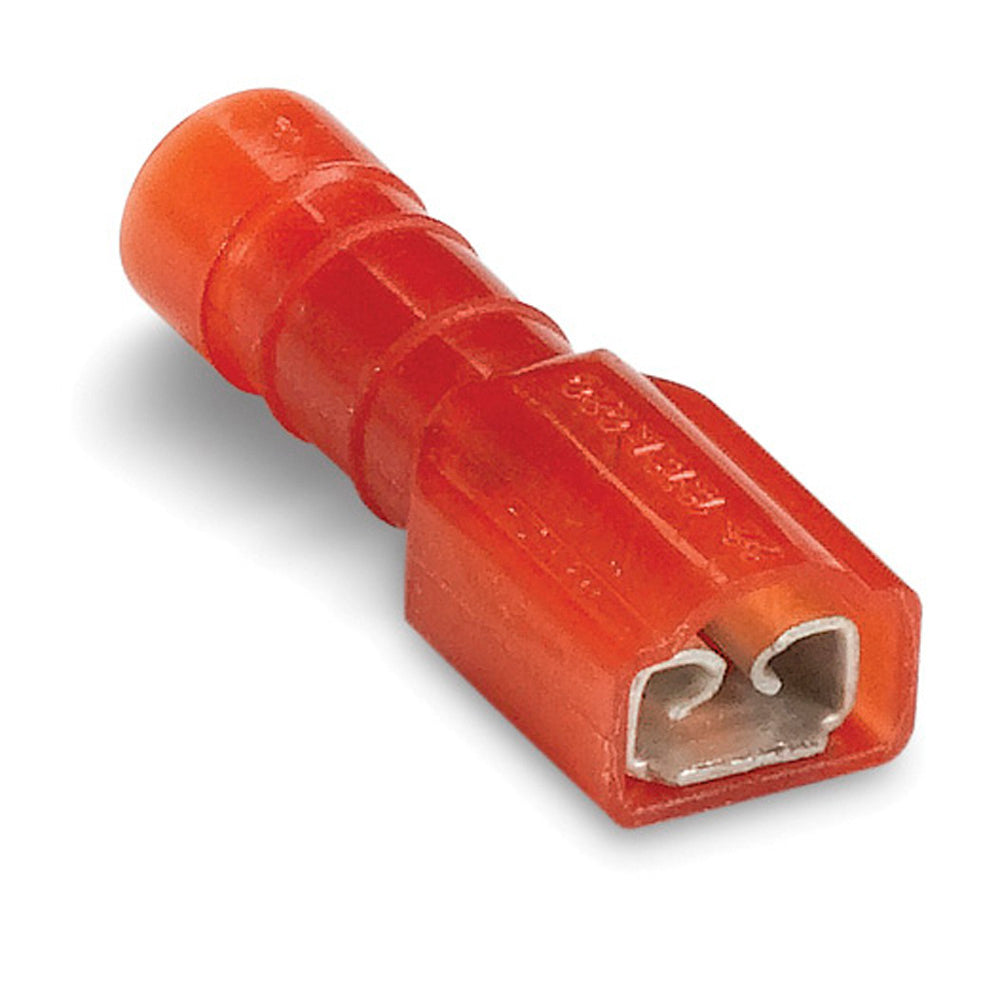

ABB 18RAD-18277 T&B Insulated Female Disconnect 600 VAC (Per 100 ea)

Product Description

ABB T&B Insulated Female Disconnect, MPN: 18RAD-18277, is designed for reliable electrical connections. The disconnect can accommodate conductor sizes ranging from twenty-two to eighteen AWG. The tab measures zero point one eight seven inches wide by zero point zero two inches thick and features a long barrel for enhanced strength.

• Works with various crimping tools including WT145C and WT2000.
• Fully insulated for safety and reliability.
• Offers a color-coded design for easy identification.

Product Highlights

This connector provides a secure and straightforward method to connect wires without tools, ensuring efficiency and reliability.

Product Information

Standard Information

• Category: Electrical, Wiring Connectors, Female Crimp Terminals
• Manufacturer: ABB - Installation Products
• UPC: 78621081892

Technical Specifications

• Voltage Rating: 600 VAC
• Temperature Rating: 105 deg C
• Material: Brass
• Finish: Electroplated Tin
• Insulation: Fully Insulated
• Dimensions: 0.89 in L x 0.3 in W
• Conductor Size: 22 to 18 AWG
• Tab Size: 0.187 in W x 0.02 in THK
