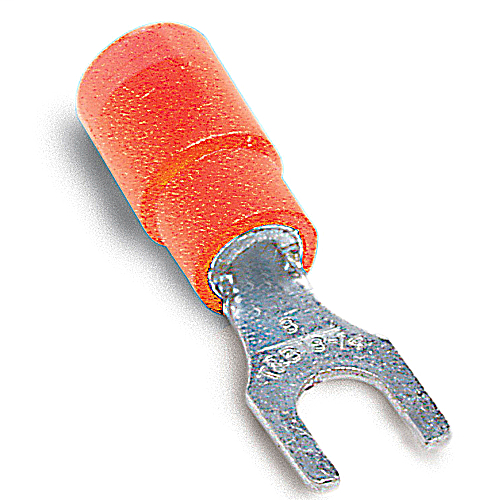

ABB 18RA-6FX Thomas & Betts 22-16 AWG Expanded Insulated Vinyl Fork Terminal

Product Description

The ABB 18RA-6FX is a vinyl-insulated fork terminal designed for wire sizes ranging from 22 to 16 AWG. It features a bolt hole size of #6, ensuring a secure connection. This product supports easy installation with expanded insulation, accommodating thicker wire with ease.

• Compatible with copper conductors for reliable electrical connections.
• Rated for 600 volts, making it suitable for a variety of electrical applications.
• UL and CSA certified for safety and reliability.

Product Highlights

This fork terminal offers expanded insulation for larger wire entry. The brazed seam construction enhances pull-out strength.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Thomas & Betts Co

Technical Specifications

• Color: Red
• Length: 0.94 inches
• Width: 0.25 inches
• Thickness: 0.03 inches
• Stud Size: #6
• Wire Range: 22 to 16 AWG
• Voltage Rating: 600 VAC
• Temperature Rating: 105 degrees C
