ABB 18RA-47PT T&B Insulated Vinyl Pin Term 22-18

Product Description

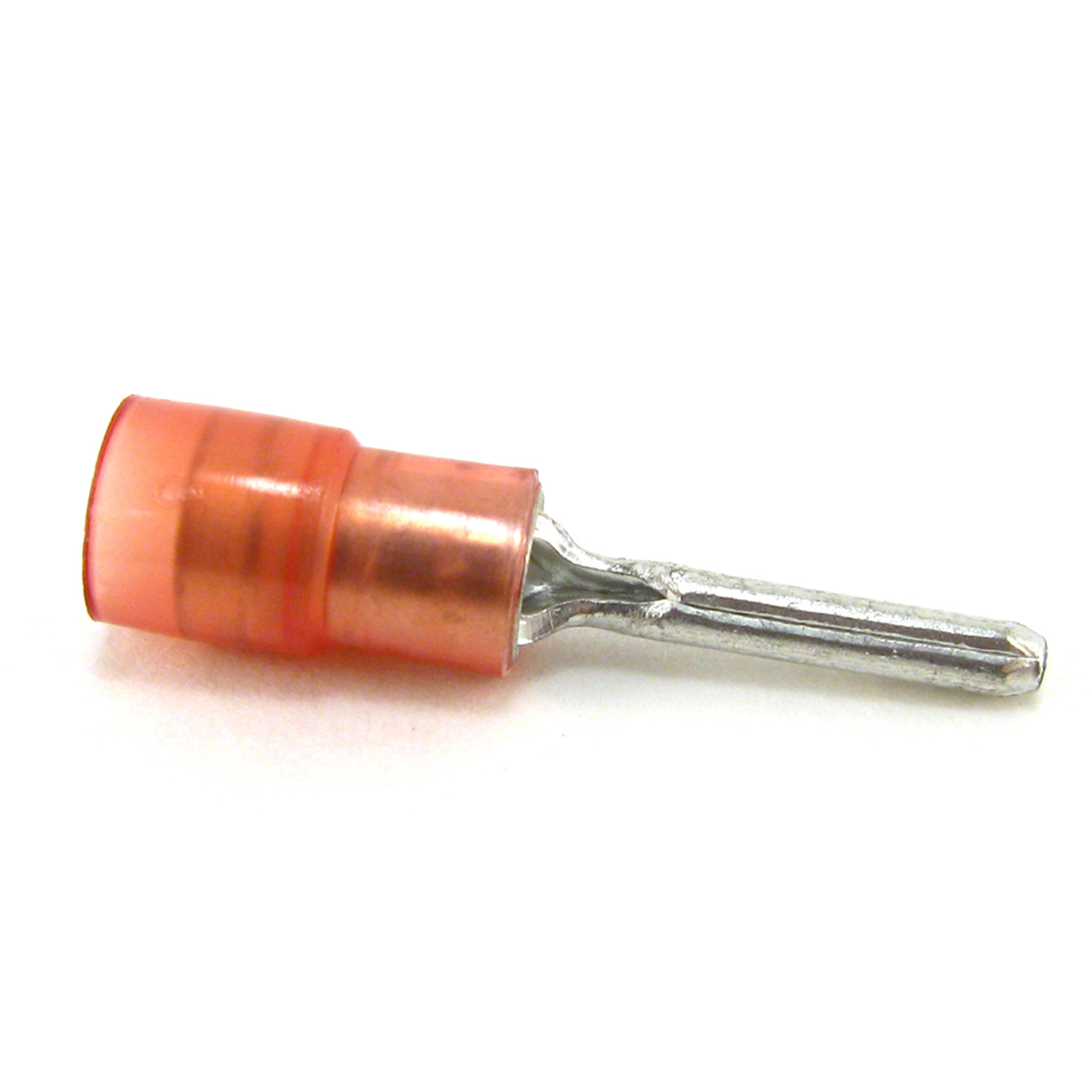

ABB 18RA-47PT is an insulated pin terminal designed for use with stranded wire. This terminal accommodates conductor sizes ranging from twenty-two to eighteen AWG. It has a pin diameter of 0.075 inches and a length of 0.39 inches. The maximum voltage rating is three hundred VAC.

• Pin terminal for easy installation.
• Vinyl insulation reduces shorting.
• Complies with global standard requirements.

Product Highlights

ABB terminals ensure strong connections and reliability for various electrical applications.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• UPC: 78621003415

Technical Specifications

• Application: For pin style terminal blocks
• Color: Red
• Conductor Size: 22 to 18 AWG
• Material: Copper
• Overall Length: 0.85 inches
• Pin Diameter: 0.075 inches
• Pin Length: 0.39 inches
• Series: RA Series
• Voltage Rating: 300 VAC
• Temperature Rating: 105 degrees C
• Standards/Approvals: UL File No. E9809, UL 94 V-0 Flammability Rated, CSA Certified
