ABB 18RA-251T T&B INS MALE DISCONNECT

Product Description

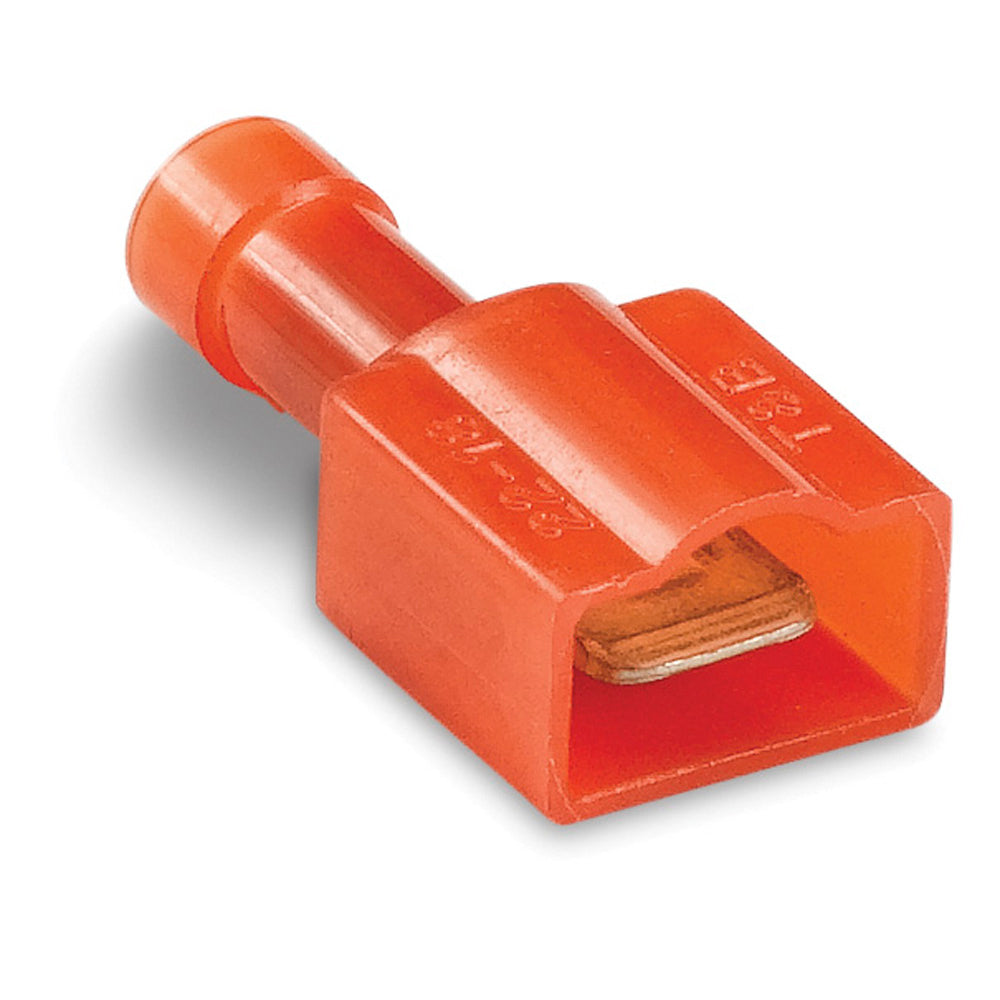

ABB 18RA-251T is a Sta-Kon insulated male disconnect. It is designed for 22 to 18 AWG conductors. This terminal features a brazed seam barrel for durability.

• Compatible with 22 to 18 AWG conductors
• Rated for 300 VAC
• Red nylon insulation for easy identification

Product Highlights

Ideal for various electrical applications, this disconnect ensures a reliable connection while providing high tensile strength.

Product Information

Standard Information

• UPC: 78621086976
• Manufacturer: ABB - Installation Products

Technical Specifications

• Color: Red
• Conductor Size: 22 to 18 AWG
• Dimensions: 1.13 in L x 0.45 in W
• Finish: Electro Plated Tin
• Material: Brass
• Series: 250
• Specifications: 0.17 in Max Insulation, 0.03 in Stock THK
• Standards/Approvals: CSA Certified, UL94 V-0 Flammability Rating, UL File No. E66716
• Tab Size: 0.25 in W x 0.032 in THK
• Temperature Rating: 105 deg C
• Terminal Type: Crimp
• Type: Insulated
• Voltage Rating: 300 VAC
