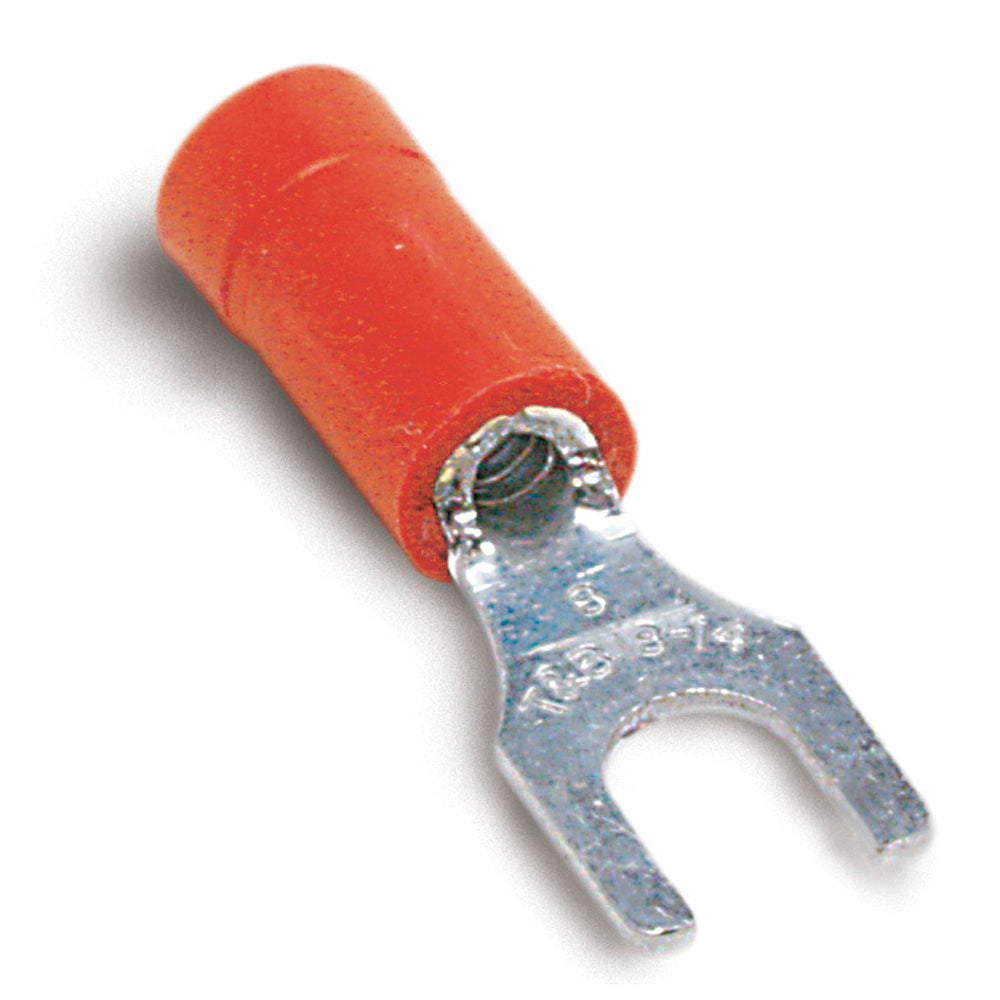

ABB 18RA-10F 18RA10F T-B INS FORK TERMINAL 22-16

Product Description

The ABB 18RA-10F is an insulated fork terminal designed for use with conductors ranging from twenty-two to sixteen AWG. This terminal features a brazed seam and serrated barrel for a reliable connection. With a length of zero point ninety-seven inches, it is suitable for various applications where dependable electrical connections are critical.

• Compatible with conductors from 22 to 16 AWG
• Rated for 600 VAC
• Features color-coded insulation for easy identification

Product Highlights

The ABB 18RA10F provides an insulated solution for electrical wiring needs. Its design promotes both safety and efficiency in electrical installations.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• UPC: 78621080093

Technical Specifications

• Color: Red
• Conductor Size: 22 to 16 AWG
• Finish: Electroplated Tin
• Length: 0.97 inches
• Manufacturer Part Number: 18RA-10F
• Material: Copper
• Series: RA Series
• Specifications: 0.15 inches maximum insulation diameter, 0.27 inches clearance, vinyl insulation
• Standards/Approvals: CSA Certified, UL 94 V-0 Flammability Rated
• Stud Size: #10
• Temperature Rating: 105 degrees Celsius
• Tongue Size: 0.31 inches wide x 0.02 inches thick
• Tongue Type: Fork
• Type: Insulated
• Voltage Rating: 600 VAC
