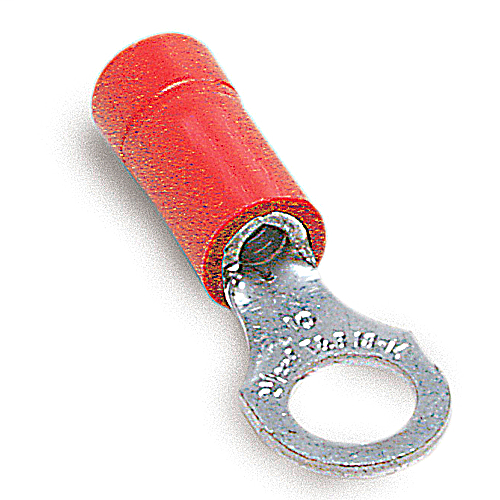

ABB 18RA-10 Vinyl-Insulated Ring Terminal - #22-16, #10bolt

Product Description

ABB 18RA-10 is a vinyl-insulated ring terminal suitable for wire sizes ranging from twenty-two to sixteen AWG. It features a length of point ninety-seven inches and has a maximum insulation diameter of point one five inches. The terminal accommodates a #10 bolt and is made of copper with tin plating for added durability.

• Designed for wire ranges of #22-#16 AWG.
• Features a brazed seam barrel for high pull-out strength.
• Self-insulated with PVC sleeve for flexibility and protection.

Product Highlights

This terminal is ideal for various electrical connections and ensures reliable performance under rated conditions.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 18RA-10

Technical Specifications

• Conductor Size: 22 to 16 AWG
• Stud Size: #10
• Material: Copper
• Insulation Type: Vinyl
• Voltage Rating: 600 VAC
• Temperature Rating: 105 degrees C
• Finish: Tin Coated
