ABB 164J4 4-Point Loadbreak Junction

Product Description

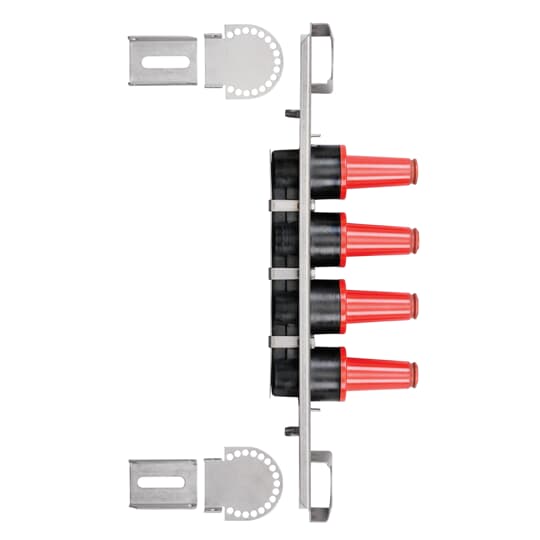

The ABB 164J4 is a 4-point loadbreak junction used in power distribution systems to connect and disconnect cable and equipment. This unit is rated for 15 kV and 200 A, allowing for operation while energized. It supports load make and break operations and includes a visible disconnect feature. The junction is made from EPDM rubber and is suitable for panel mounting. It can also work with insulated caps, plugs, and parking bushings to isolate various components.

• Rated for 15 kV and 200 A
• Supports energized load make/break operations
• Made from EPDM rubber for durability

Product Highlights

This junction is essential for ensuring safe connections in high-voltage systems.

Product Information

Standard Information

• Brand: ABB
• Category: Cable accessories

Technical Specifications

• MPN: 164J4
• Application: 15 kV, 200 Amps
• Voltage Rating: 15 kV
• Amperage Rating: 200 A
• Material: EPDM Rubber
• Mounting Type: Panel
• Temperature Rating: -40 to +65 C
• Dimensions: 23.74 inches L x 9.41 inches D
