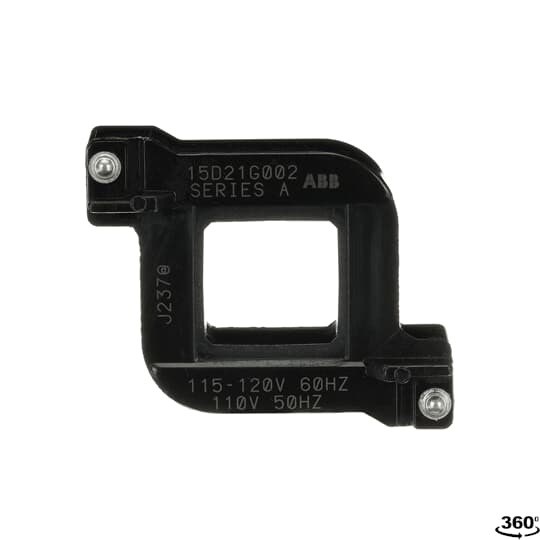

Abb 15D21G002 Magnet Coil 120V Nema Size 00 0 1

Product Description

The ABB 15D21G002 is a replacement magnet coil designed for use in NEMA-rated magnetic contactors and starters. It operates at 115-120 volts at 60 Hz and 110 volts at 50 Hz, making it suitable for both standard North American electrical systems and select international applications. The coil generates the electromagnetic field that closes the contactor, enabling or interrupting power to motor loads and other electrical equipment. Installation is performed by licensed electricians or qualified maintenance technicians working on motor control centers and starter panels.

This magnet coil is rated for NEMA Size 00, 0, and 1 magnetic contactors and starters within the ABB 300-Line and 200-Line product families. It is commonly used in light-duty to medium-duty motor control applications found in commercial and industrial settings, including HVAC equipment, pump controls, compressor starters, and general-purpose motor switching.

Key Features

• Rated for 60 Hz operation at 115-120 volts and 50 Hz operation at 110 volts
• Compatible with NEMA Size 00, 0, and 1 contactors and starters
• Designed for ABB 300-Line and 200-Line magnetic contactors and starters
• OEM-style replacement coil for field service and maintenance

Compatibility

Designed for use with ABB NEMA-rated 300-Line and 200-Line magnetic contactors and starters in NEMA Size 00, 0, and 1.

Installation Notes

Magnet coil replacement is performed by a licensed electrician. De-energize and lock out the panel or motor control center before beginning work, following NFPA 70E lockout/tagout procedures. Verify that the replacement coil voltage rating matches the control circuit voltage before installation. Inspect contactor contact surfaces and mechanical components while the unit is open for service.

Technical Specifications

• Voltage at 60 Hz: 115-120 volts
• Voltage at 50 Hz: 110 volts
• NEMA Size: 00, 0, 1
• Compatible Line: 300-Line and 200-Line
• UPC: 783166313701

Standard Information

• Brand: ABB
• Manufacturer Part Number: 15D21G002
