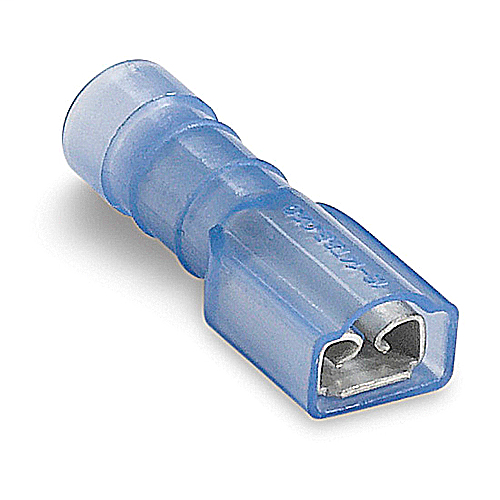

ABB 14RBD-18277 Thomas & Betts 16-14 AWG Wire Range .89 Inch Length .187 Inch Tab Size Fully Insulated Nylon Female Disconnect

Product Description

The ABB 14RBD-18277 is a fully insulated nylon female disconnect designed for high reliability in electrical connections. This component is suitable for use with wires ranging from sixteen to fourteen AWG. With a tab size of zero point one eighty-seven inches, this disconnect ensures a stable and secure connection.

• Designed for use with 16 to 14 AWG wire.
• Features quick and reliable connections without tools.
• Manufactured by Thomas & Betts Co, a recognized name in the industry.

Product Highlights

The ABB 14RBD-18277 combines efficiency and dependability, making it an essential choice for electrical projects.

Product Information

Standard Information

• Manufacturer: Thomas & Betts Co
• Brand: ABB

Technical Specifications

• Conductor Size: 16 to 14 AWG
• Length: 0.89 inches
• Width: 0.30 inches
• Tab Size: 0.187 inches width x 0.020 inches thick
• Maximum Insulation Diameter: 0.170 inches
• Material: Nylon
• Temperature Rating: 105 degrees C
• Voltage Rating: 600 VAC
