Product Description

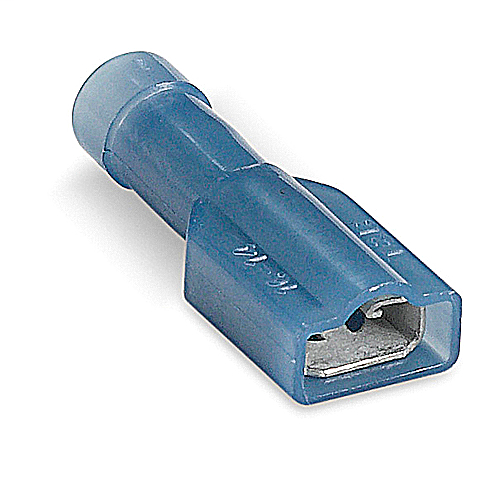

The ABB 14RB-2577 is a nylon fully-insulated female disconnect designed for wire connections. This product is suitable for wire sizes between sixteen and fourteen AWG. Its tab size measures .250 inches by .032 inches, ensuring secure connections. The maximum insulation diameter is .185 inches, making it reliable for various applications.
- Material: Brass with electro-tin plating
- Voltage Rating: 600 VAC
- Temperature Rating: 105 degrees C
Product Highlights
This female disconnect provides dependable performance and features a unique construction for long-term use. It is color-coded to facilitate easy installation.
Product Information
Standard Information
-
Brand: ABB
-
Manufacturer Part Number: 14RB-2577
Technical Specifications
-
Conductor Size: 16-14 AWG
-
Dimensions: 1.01 inches length x 0.38 inches width
-
Tab Size: 0.25 inches x 0.032 inches
-
Finish: Electro-Tin Plated
-
Certification: CSA, UL
-
Insulation Type: Nylon, Polyamide
-
Material: Brass
-
Standards: UL 94 V-0 Flammability Rating
