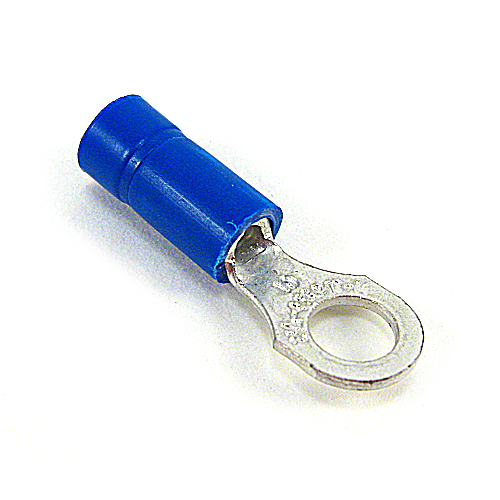

ABB 14RB-14 Thomas & Betts 18 to 14 AWG 1/4 Inch Stud Blue Electrotinned Copper Vinyl Insulated Ring Terminal

Product Description

ABB 14RB-14 is a vinyl-insulated ring terminal designed for wire connections ranging from eighteen to fourteen AWG. This terminal features a 1/4 inch stud size and is ideal for use in various electrical applications.

• Designed for 18 to 14 AWG wire size
• Features a copper construction with tin plating for corrosion resistance
• Insulated for safe and reliable use

Product Highlights

The ABB 14RB-14 vinyl-insulated ring terminal is the choice for efficient electrical terminations. It enhances connectivity while providing insulation against electrical shorts.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Thomas & Betts Co

Technical Specifications

• MPN: 14RB-14
• Wire Size: 18 to 14 AWG
• Stud Size: 1/4 inch
• Length: 1.14 inches
• Width: 0.50 inches
• Material: Copper
• Finish: Tin Plated
• Voltage Rating: 600 VAC
• Temperature Rating: 105 degrees C
• Insulation Type: Vinyl
• Flammability Class: Rated V-0 Per UL94
