ABB 14RB-10FCP TERMINALS
ABB 14RB-10FCP TERMINALS
ABB 14RB-10FCP Thomas & Betts 18-14 AWG #10 Blue Insulated Vinyl Fork Terminal

ABB 14RB-10FCP Thomas & Betts 18-14 AWG #10 Blue Insulated Vinyl Fork Terminal

ABB
Brand: ABB
SKU: 14RB-10FCP
Availability: Out Of Stock
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Call for Pricing
Call for Pricing
Manuals:
LTL Delivery

This product weighs 113 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

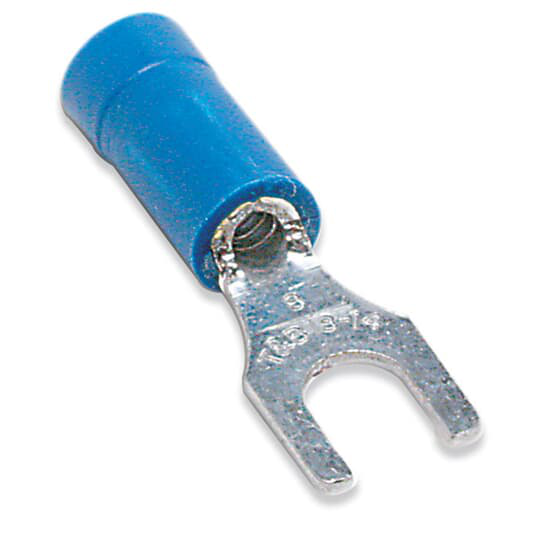

ABB 14RB-10FCP is a vinyl-insulated fork terminal designed for wire connections. It has a wire range of eighteen to fourteen AWG and is suitable for #10 bolt holes.

  • Vinyl insulation provides protection and stress relief at the wire's flex point.
  • Serrated brazed seam barrel offers high pull-out value.
  • Color-coded insulation for easy identification.

Product Highlights

This terminal is ideal for use with round conductors and is rated for six hundred volts. It features a maximum insulation thickness of one hundred seventy thousandths of an inch.

Product Information

Standard Information

  • Brand: ABB
  • Manufacturer: Thomas & Betts Co

Technical Specifications

  • Wire Size: 18-14 AWG
  • Stud Size: #10
  • Material: Copper
  • Insulation Type: PVC
  • Terminal Type: RB
  • Flammability Class: Rated V-0 Per UL94
  • Voltage Rating: 600 Volts
  • Temperature Rating: 105 degrees C
