Abb 14RB-10 Vinyl-Insulated Ring Terminal #18-14, #10bolt

Product Description

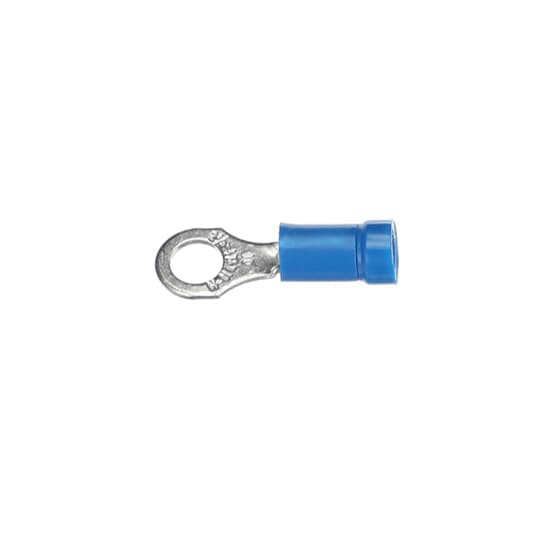

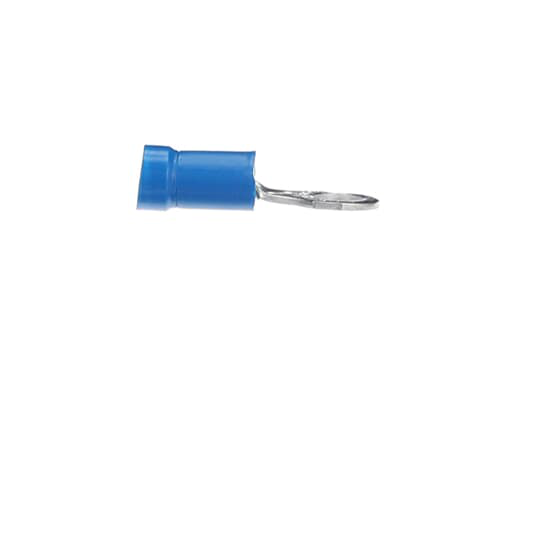

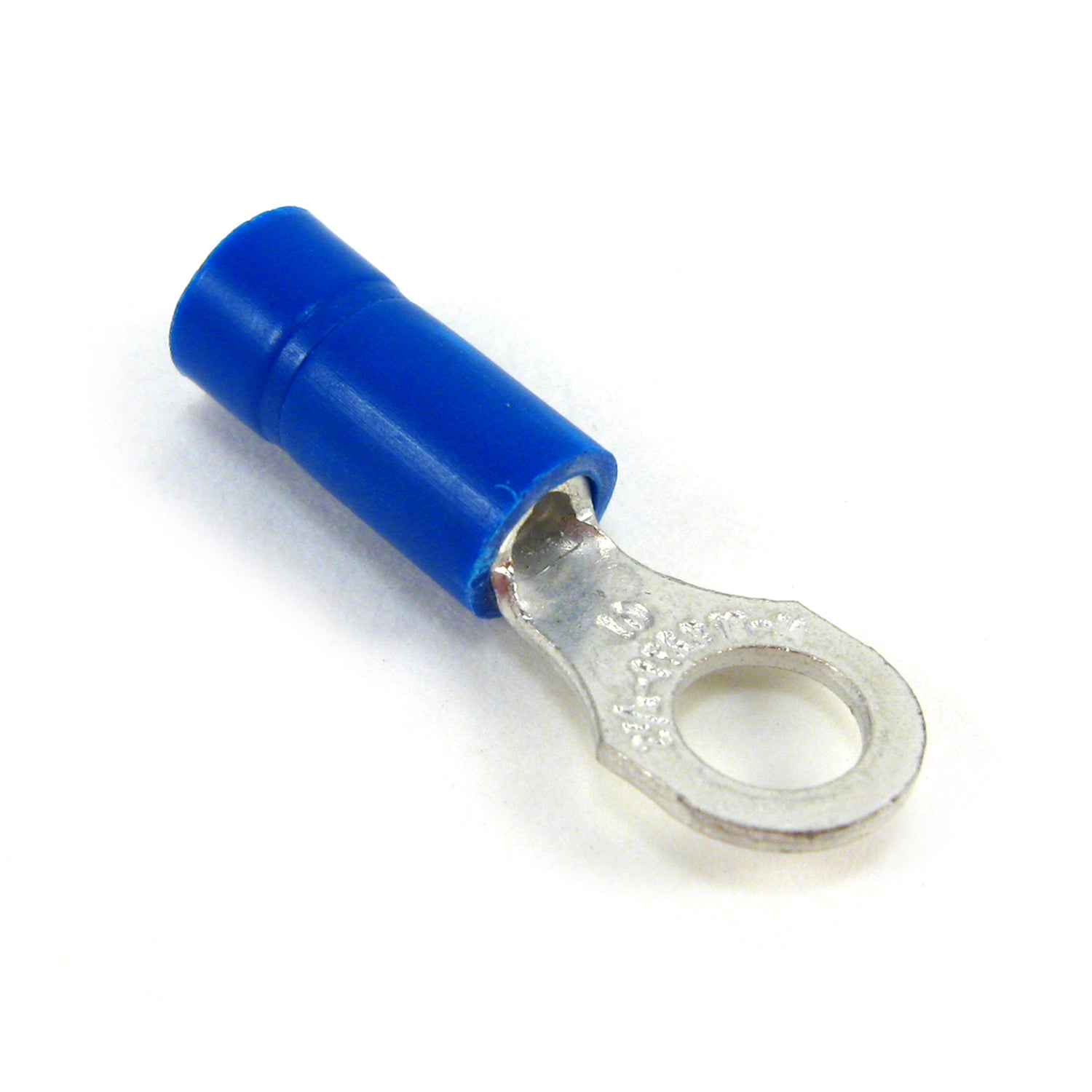

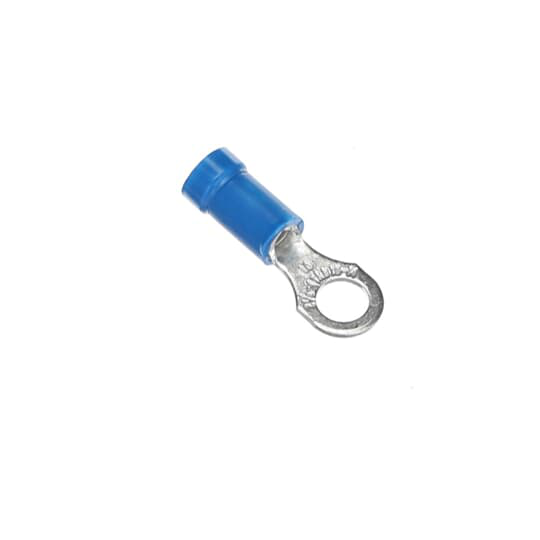

The ABB 14RB-10 is a vinyl-insulated ring terminal with a length of 0.97 inches and a width of 0.31 inches. It features a maximum insulation of 0.170, a #10 bolt hole, and a wire range of #18-#14 AWG. The terminal is made of copper with a tin-plated finish and is suitable for use with round conductors.

• Self-insulated with a PVC insulation sleeve for protection and stress relief.
• Brazed seam barrel is serrated for high pull-out value.
• Rated V-0 Per UL94 flammability class.

Product Highlights

This ring terminal ensures a secure and reliable connection for various electrical applications, featuring a durable construction and insulated design.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 14RB-10

Technical Specifications

• Brand: ABB
• Manufacturer: Thomas & Betts Co
• Color: Blue
• Finish: Tin Plated
• Voltage: 600 Volt
• Material: Copper
• Standard: UL E9809
• Stud Size: #10
• Sub Brand: Sta-Kon®
• Thickness: 0.03 in
• Used With: Round Conductors
• Wire Size: 18-14 AWG
• Barrel Type: Brazed Seam
• Terminal Type: RB
• Conductor Size: 18-14 AWG
• Insulation Type: Insulated Vinyl
• Temperature Rating: 105 degrees C
• Insulation Material: PVC
• Type: Short Sleeve
• Voltage Rating: 600 V
• RoHS: RoHS3 Compliant
• TSCA: TSCA Section 6(h) Compliant
• ETIM: EC001052 Solderless copper terminals for copper conductors
• Flange shape: Ring shape
• Insulation: Vinyl
• Colour insulation: Blue
• Reel packaging: N
• AWG-range: 18-14
• Surface protection: Tinned
• Stud size (imperial): 10
• Length: 0.97 in
• Series: RB Series
• Tongue Type: Ring
• Tongue Size: 0.31 in W x 0.03 in THK
• Maximum Insulation Diameter: 0.17 in
• Clearance: 0.27 in
