Product Description

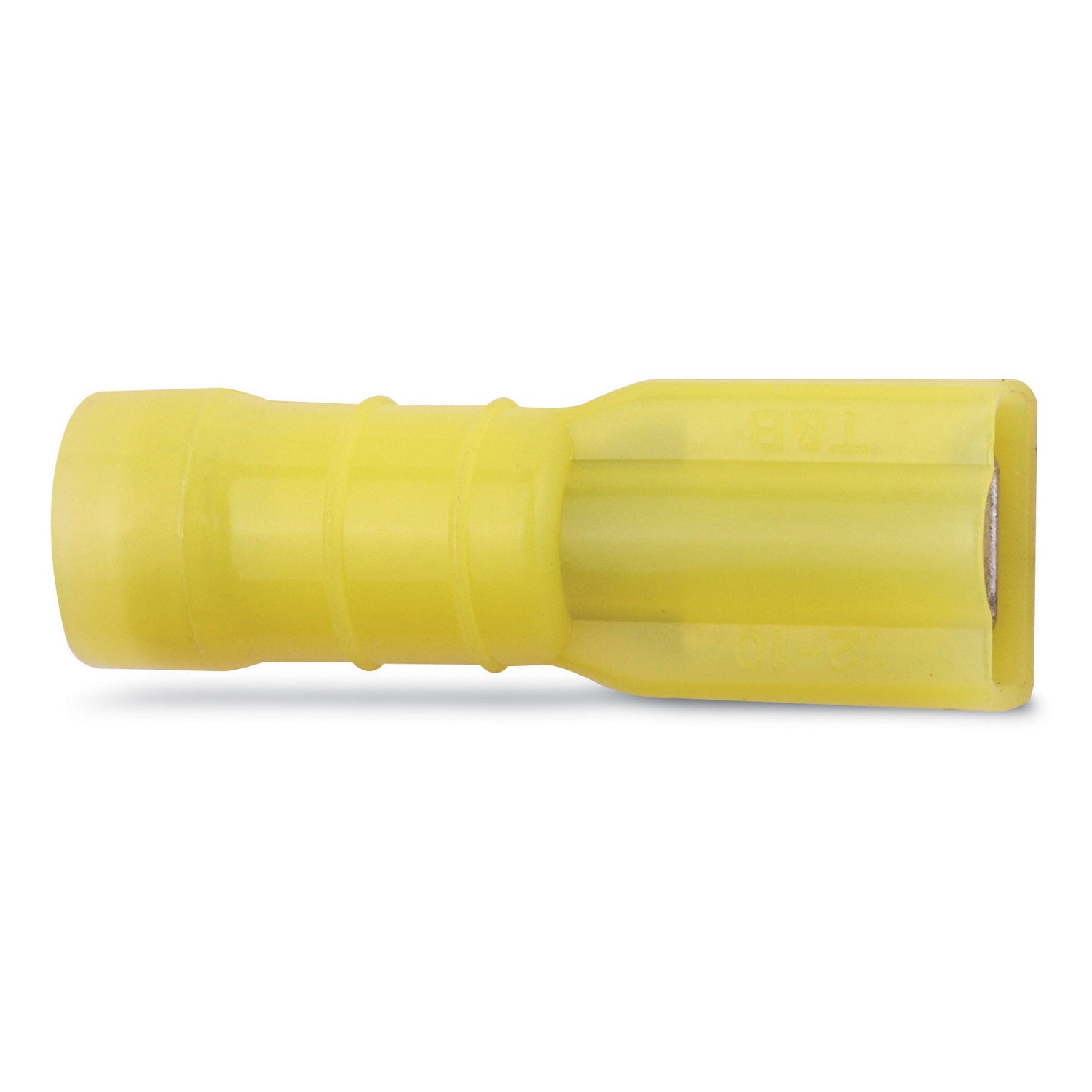

ABB 10RC-2577 is a nylon fully insulated female disconnect designed for electrical connections. This product is suitable for connecting wires within the range of twelve to ten AWG. It features a tab size of 0.25 inches wide by 0.032 inches thick, ensuring a secure electrical connection in various applications.
- Suitable for use with WT145C, WT2000, WT112M, ERG4001, ERG4003 tools.
- Electroplated tin finish ensures durability and corrosion resistance.
- Operating temperature rating up to 105 degrees Celsius.
Product Highlights
This female disconnect is color-coded for easy identification and is known for its long-term dependability.
Product Information
Standard Information
-
Manufacturer: ABB - Installation Products
-
Manufacturer Part Number: 10RC-2577
Technical Specifications
-
Conductor Size: 12 to 10 AWG
-
Tab Size: 0.25 inches wide x 0.032 inches thick
-
Length: 1.04 inches
-
Width: 0.38 inches
-
Maximum Insulation Diameter: 0.225 inches
-
Temperature Rating: 105 degrees Celsius
-
Voltage Rating: 600 VAC
-
Material: Brass
-
Finish: Electroplated tin
