Product Description

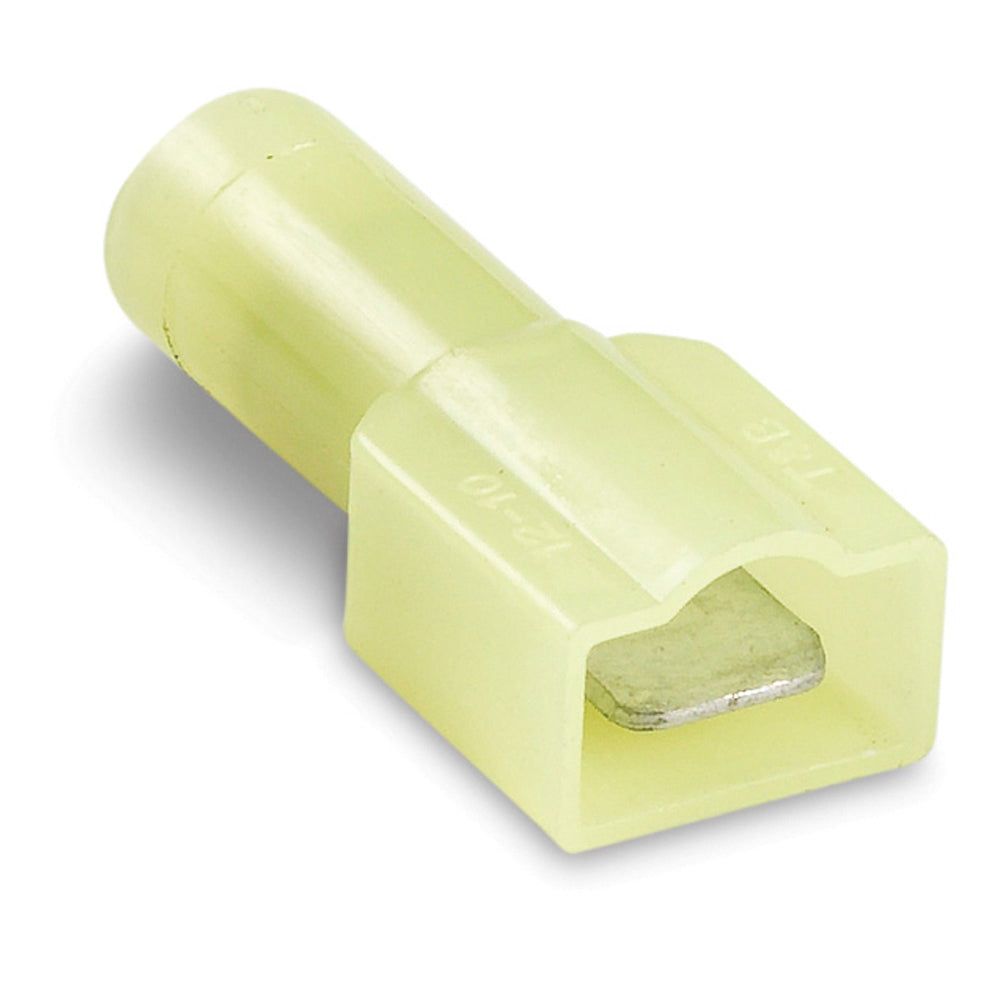

The ABB 10RC-251T is a male tab connector designed for use with twelve to ten AWG conductors. This product features a brazed seam barrel for secure connections. It is suitable for applications up to three hundred VAC and is built to withstand temperatures up to one hundred five degrees Celsius.
- Brazed seam serrated barrel for maximum tensile strength
- Insulated design for enhanced safety
- Made from brass and copper materials
Product Highlights
This Sta-Kon male tab is an ideal choice for electrical installations requiring reliable connections.
Product Information
Standard Information
-
Manufacturer: ABB - Installation Products
-
UPC: 78621086974
Technical Specifications
-
Color: Yellow
-
Conductor Size: 12 to 10 AWG
-
Dimensions: 1.17 in L x 0.45 in W
-
Finish: Electro Plated Tin
-
Manufacturer Part Number: 10RC-251T
-
Material: Brass
-
Series: 250
-
Specifications: 1/4 in Maximum Insulation, 0.04 in Stock
-
Standards/Approvals: CSA Certified, UL94 V-0 Flammability Rating, UL File No. E66716
-
Tab Size: 0.25 in W x 0.032 in THK
-
Temperature Rating: 105 deg C
-
Terminal Type: Crimp
-
Type: Insulated
-
Voltage Rating: 300 VAC
