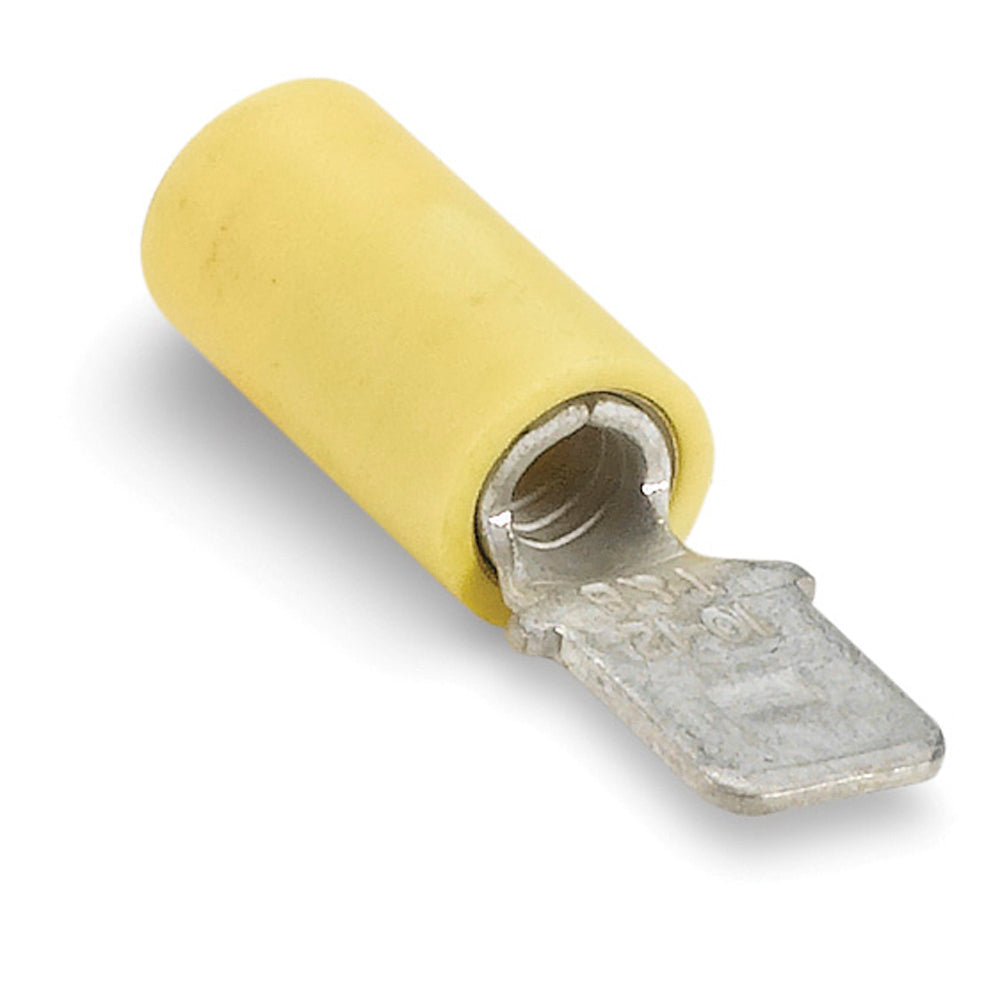

ABB 10RC-250T 10RC-250T T&B Disconnect Ins Vinyl Male-250 Tab 12-10 YEL

Product Description

The ABB 10RC-250T is an insulated male tab connector. This connector is designed for use with twelve to ten American Wire Gauge (AWG) conductors. It features a tab size of 0.25 inches wide and 0.032 inches thick. The connector is a crimp terminal rated for 600 volts AC. The insulation has a maximum diameter of one quarter inch and a temperature rating of 105 degrees Celsius.

• Insulated male tab for secure connections
• Rated for 600 VAC
• Constructed of brass with tin electro-plated finish

Product Highlights

This connector offers ease of use in electrical applications. Its robust design ensures reliable connections across various environments.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• UPC: 78621083934

Technical Specifications

• Conductor Size: 12 to 10 AWG
• Dimensions: 1.08 inches long
• Voltage Rating: 600 VAC
• Temperature Rating: 105 degrees Celsius
• Tab Size: 0.25 inches wide x 0.032 inches thick
• Material: Brass with tin electro-plating
• Standards/Approvals: CSA Certified, UL94 V-0 Flammability Rating
• Series: 250
