ABB 10RC-250F Vinyl Self-Insulated Female Disconnect 600 Volt (12-10 AWG) 10RC-250F

Product Description

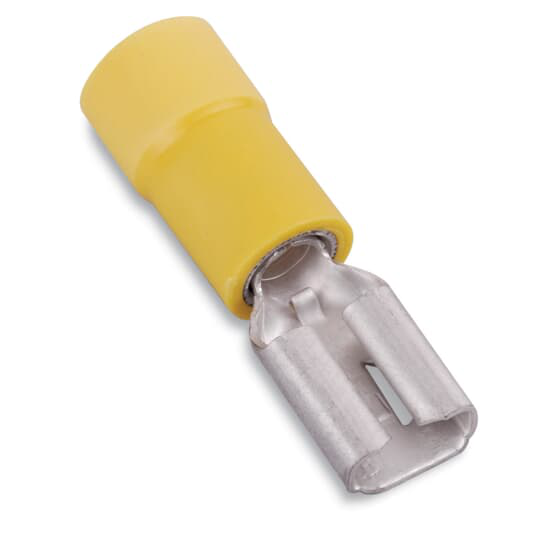

ABB 10RC-250F is a vinyl-insulated female disconnect designed for use with wire sizes from twelve to ten AWG. Its compact dimensions of one point zero three inches in length and zero point twenty-nine inches in width make it suitable for tight spaces.

• Vinyl insulation for safety and reliability.
• Brass construction with electro-tin plating for corrosion resistance.
• Compatible with crimping tools such as WT145C and ERG4001.

Product Highlights

This disconnect terminal ensures a secure connection and is ideal for various electrical applications.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Thomas & Betts Co

Technical Specifications

• MPN: 10RC-250F
• Material: Brass
• Voltage Rating: 600 VAC
• Temperature Rating: 105 degrees C
• Color: Yellow
• Insulation Material: PVC
• Terminal Type: Crimp
• Conductor Size: 12-10 AWG
• Tab Size: 0.25 in W x 0.032 in THK
• Insulation Thickness: 0.04 in
• Max Insulation Diameter: 0.25 in
• Standards/Approvals: UL E66716, CSA Certified
• Series: 250
