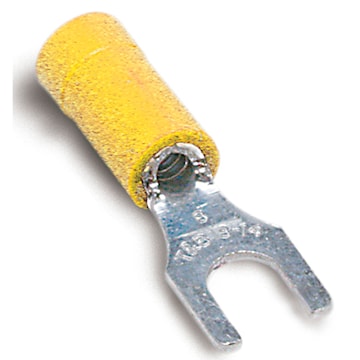

Abb 10RC-14F Ins Vinyl Fork Terminal No12-10 1/4

Product Description

The ABB 10RC-14F vinyl-insulated fork terminal provides solutions for single cabling to terminal strips. It accommodates wire sizes from #12-#10 AWG and features a 1/4 inch bolt hole. The extra-long PVC insulation sleeve offers protection and stress relief at the wire's flex point. This terminal is made of copper with tin plating.

• These fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wire's flex point.
• Brazed seam barrel is serrated for high pull-out value.
• Insulation is color-coded.

Product Highlights

The ABB 10RC-14F insulated fork terminal is suitable for use with round conductors and is UL Listed and CSA approved.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 10RC-14F

Technical Specifications

• Voltage Rating: 600 V
• Material: Copper
• Brand Name: ABB
• Standard: UL E9809
• Wire Size: 12-10 AWG
• RoHS: RoHS3 Compliant
• TSCA: TSCA Section 6(h) Compliant
• ETIM: EC001052 Solderless copper terminals for copper conductors
• Flange shape: Fork shape
• Insulation: Polyvinyl chloride (PVC)
• Colour insulation: Yellow
• AWG-range: 12-10
• Surface protection: Tinned
• Stud size (imperial): 1/4 inch
• Sub Brand: Sta-Kon®
• Item Name: Insulated Fork Terminal
• Type: Short Sleeve
• Stud Size: 1/4 in
• Finish: Tin Plated
• Barrel Type: Brazed Seam
• Temperature Rating: 105 degrees C
• For Use With: Round Conductors
• Bolt Size: 1/4"
• Insulated: Yes
• Lug Range From: 10
• Lug Range To: 12
