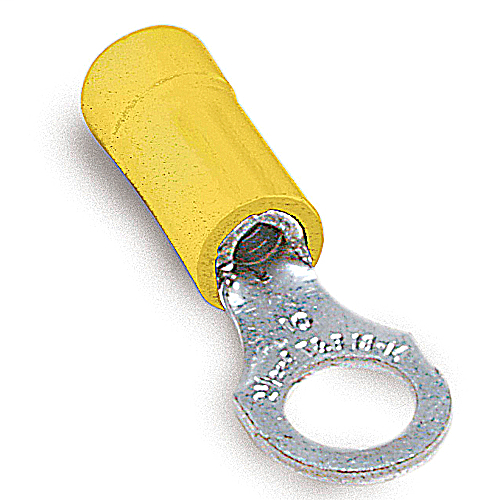

ABB 10RC-14 Thomas & Betts 10RC-14 Vinyl-Insulated Ring Terminal - #12-10, 1/4 bolt

Product Description

ABB 10RC-14 Vinyl-Insulated Ring Terminal is designed for connecting wire sizes from twelve to ten American Wire Gauge (AWG). It features a length of one point sixteen inches and a width of zero point five inches. The terminal has a maximum insulation diameter of zero point twenty one inches and accommodates a quarter-inch bolt hole.

• Vinyl insulation offers protection from electrical interference.
• Self-insulated design reduces bending stress at wire connections.
• Constructed with copper material and coated with tin for corrosion resistance.

Product Highlights

This insulated ring terminal ensures reliable connections in various electrical applications, making it suitable for use with round conductors and tools including WT145C and ERG4001.

Product Information

Standard Information

• Manufacturer: Thomas & Betts Co
• UPC: 78621080046

Technical Specifications

• Size: 12 to 10 AWG
• Material: Copper
• Insulation Type: Vinyl
• Voltage Rating: 600 VAC
• Temperature Rating: 105 degrees C
• Stud Size: 1/4 inch
• Color: Yellow
• Finish: Tin Coated
