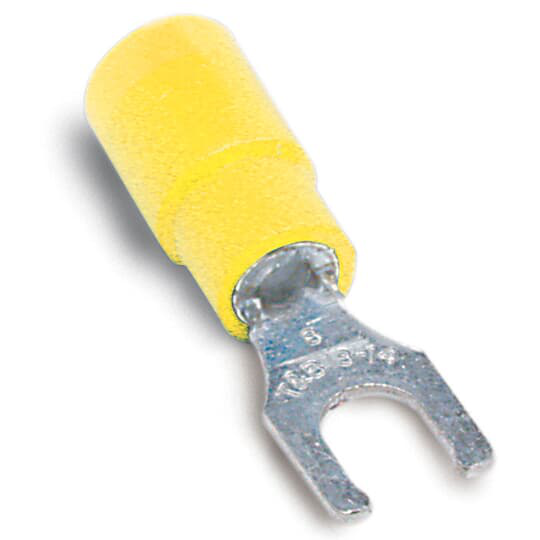

ABB 10RC-10FLX Thomas & Betts 12-10 AWG Wire Range Fork Terminal

Product Description

The ABB 10RC-10FLX is a locking fork terminal designed for wire connections ranging from twelve to ten AWG. This terminal features expanded vinyl insulation to enhance safety and reliability.

• Compatible with a maximum insulation diameter of one quarter inch.
• Locking design allows secure connection.
• Rated for use in applications up to six hundred volts.

Product Highlights

This terminal is part of the RC Series, offering reliable electrical connections for various applications, including automotive and industrial uses.

Product Information

Standard Information

• Brand: ABB
• Product ID: 87889

Technical Specifications

• Type: Expanded Insulated
• Voltage Rating: 600 VAC
• Conductor Size: 12 to 10 AWG
• Length: 1.1 inches
• Width: 0.37 inches
• Stud Size: #10
• Material: Copper
• Finish: Electroplated Tin
• Temperature Rating: 105 degrees C
• Flammability Class: Rated V-0 Per UL94
• Standards/Approvals: UL Certified, CSA Certified
