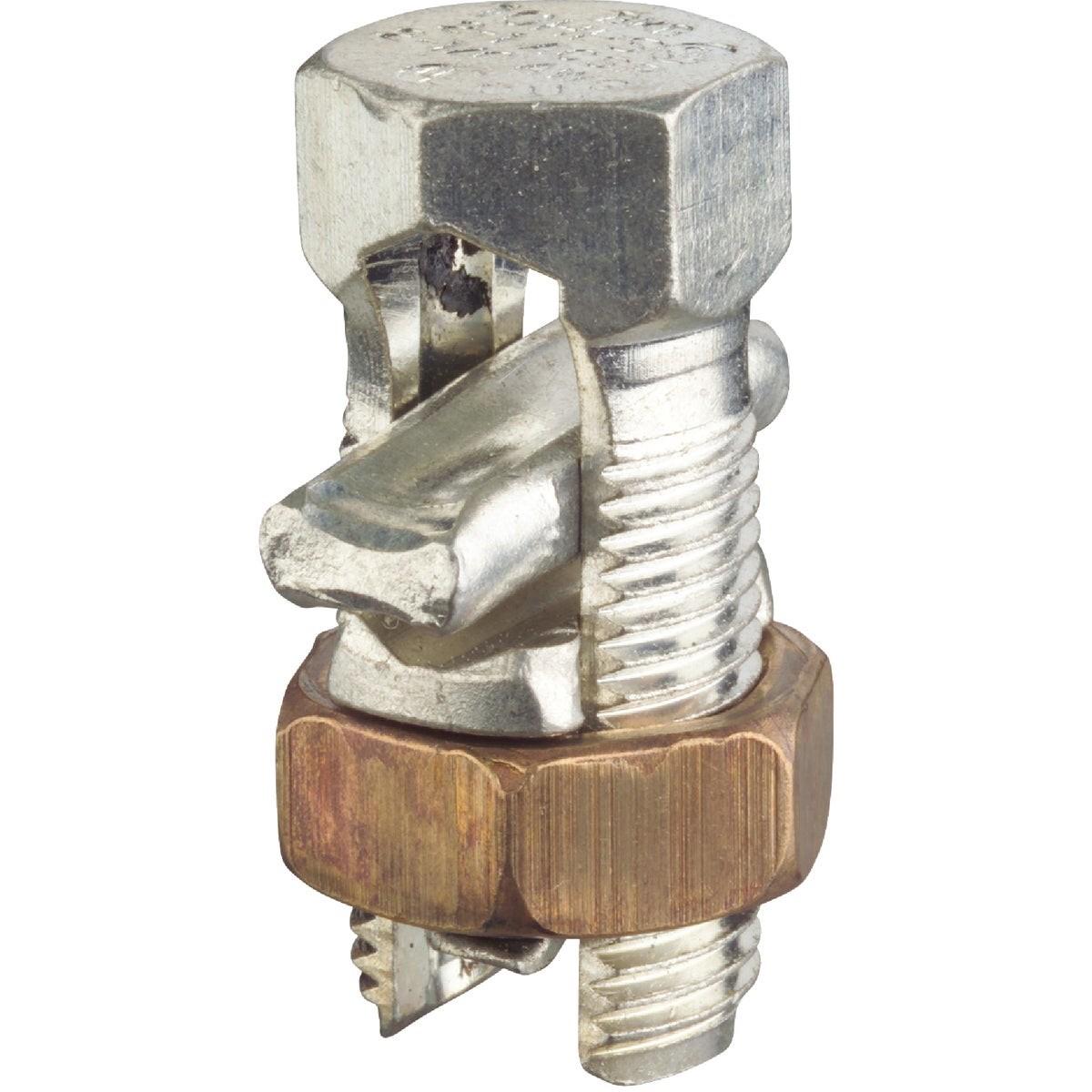

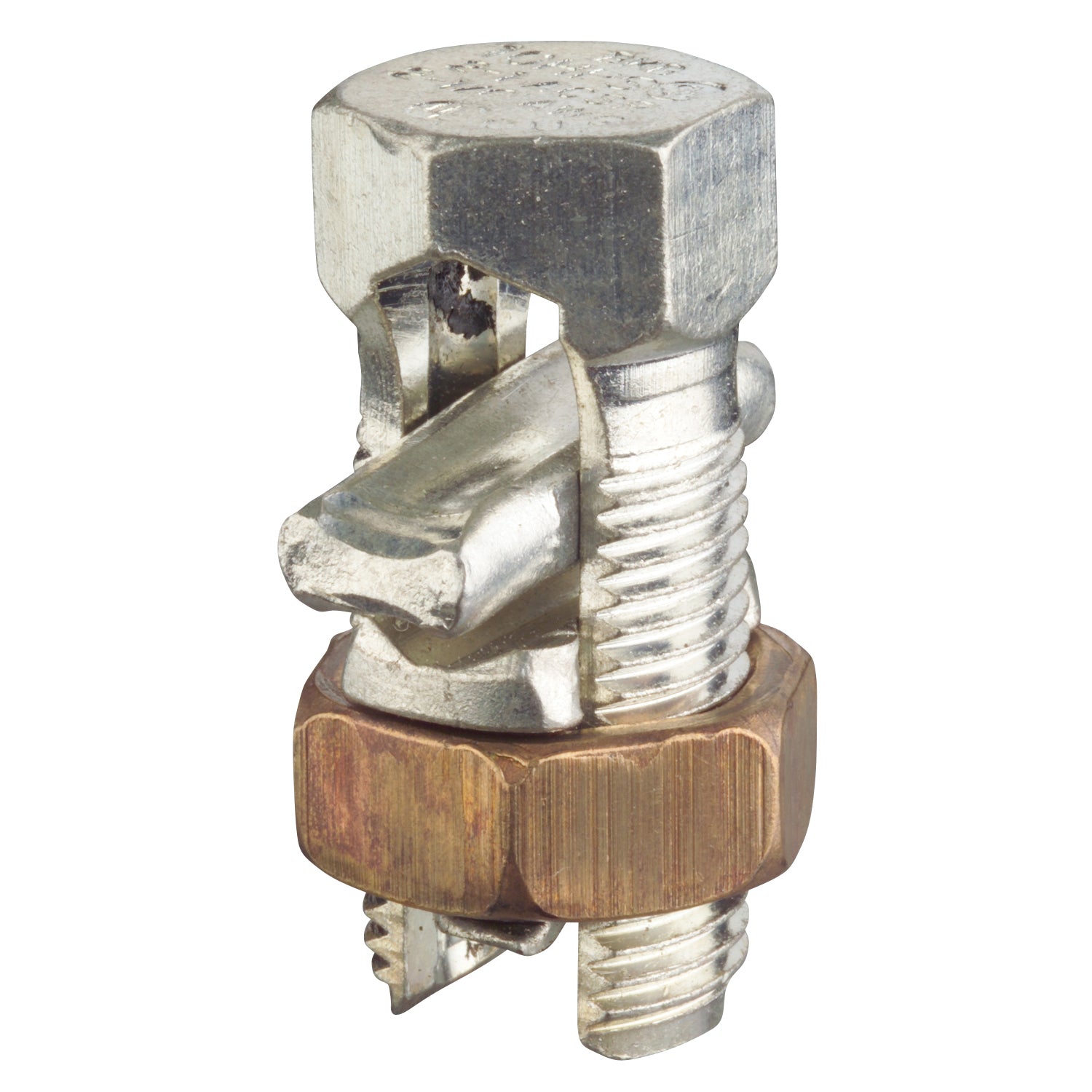

ABB 10HPS Blackburn 1/0 Str. to 6 Sol. Tin Plated Copper Alloy Split Bolt Connector

Product Description

The ABB 10HPS is a Blackburn split bolt connector designed for electrical connections. This connector serves as a reliable solution for splicing and terminating conductors in power and grounding applications.

• Conductor range from 1/0 to six AWG
• Electro-plated tin finish for corrosion resistance
• Includes contoured spacer for secure fit

Product Highlights

Used in various electrical installations where grounding and conductor joining is required.

Product Information

Standard Information

• Manufacturer: ABB
• Brand: Blackburn

Technical Specifications

• Application: For splicing, tapping, or terminating conductors in power and grounding electrical connections
• Conductor Size: Six to 1/0 AWG
• Conductor Type: ACSR, Solid, Stranded Aluminum, Copper
• Bolt Size: Three-fourths by one and thirteen-sixteenths inches
• Split Size: Zero point three-eight-five inches
• Hex Nut Size: Fifteen-sixteenths inch
• Material: Copper Alloy
• Finish: Electro-Plated Tin
• Standards/Approvals: UL File No. E9809, CSA Certified
