Abb 10222842 Pvc Conduit Elbow 3 in 90 Deg Sch 40

Product Description

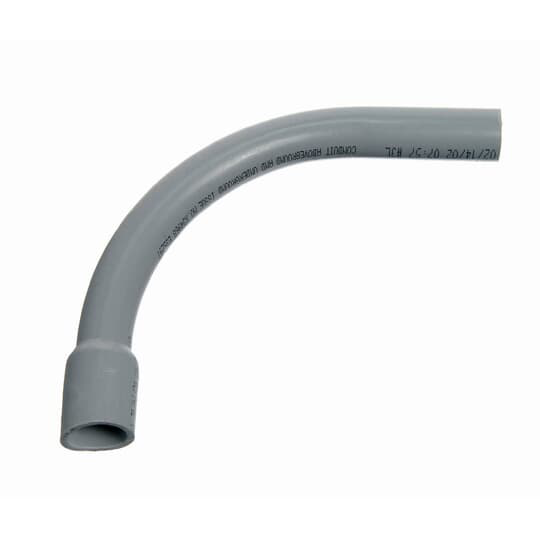

The ABB 10222842 is a Schedule 40 PVC conduit elbow designed for 90-degree directional changes in electrical conduit runs. Sized at 3 inches with a standard bend radius and a belled end for simplified coupling, this fitting is a go-to component for raceways in both exposed and buried installations. The PVC construction resists corrosion and moisture, making it well suited for wet or damp locations. Licensed electricians and electrical contractors install this fitting as part of rigid and schedule 40 PVC conduit systems in residential, commercial, and light industrial applications.

This elbow is used wherever a 90-degree turn is needed in a PVC conduit run. Common scenarios include service entrance routing, underground feeder conduit, exterior wall penetrations, and panel connections. The belled end accepts standard 3-inch Schedule 40 PVC conduit directly without a separate coupling, reducing the number of fittings required at the joint and simplifying the pull.

Key Features

• 3-inch trade size fits Schedule 40 PVC conduit of matching diameter
• 90-degree bend with standard bend radius for code-compliant directional changes
• Belled end eliminates the need for a separate coupling at one end
• PVC construction provides corrosion resistance in wet, damp, and direct-burial locations
• Schedule 40 wall thickness suitable for standard conduit system pressure and mechanical requirements

Compatibility

Designed as an OEM-style fitting for use with 3-inch Schedule 40 PVC conduit systems in electrical raceway applications.

Installation Notes

Installation is performed by licensed electricians in accordance with NEC Article 352 governing rigid PVC conduit. De-energize all circuits in the affected raceway before pulling wire through completed conduit runs. Solvent-weld the non-belled end to the adjoining conduit using PVC conduit cement and primer per the cement manufacturer's instructions. Allow adequate cure time before pulling conductors.

Technical Specifications

• Trade Size: 3 inches
• Bend Angle: 90 degrees
• Bend Radius: Standard
• Material: PVC
• Schedule: 40
• End Type: Belled End
• UPC: 034481196242

Standard Information

• Brand: ABB
• Manufacturer Part Number: 10222842
