Abb 10222776 Liquidtight 90 Degree Elbow 3/4 Inch Pvc

Product Description

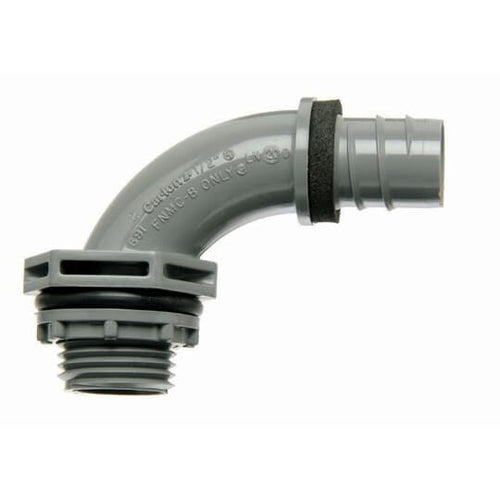

The ABB 10222776 is a one-piece liquidtight non-metallic 90-degree elbow fitting designed for use with flexible conduit systems in commercial and residential electrical installations. Constructed from PVC, this fitting resists corrosion and is fully non-conductive, making it suitable for wet and damp location wiring. The one-piece body eliminates the need to disassemble components prior to installation, and no compression nut is required. It is rated for temperatures up to 140 degrees F (60 degrees C) and is listed to UL E32447 and certified to CSA standards. Electricians and electrical contractors use this fitting where flexible conduit must change direction cleanly and securely.

This fitting is intended for use in flexible liquidtight conduit runs requiring a 90-degree change in direction. Common applications include equipment connections, machine tool wiring, HVAC unit wiring, and other installations where vibration or movement is present. The 3/4-inch trade size accommodates standard liquidtight flexible non-metallic conduit of the corresponding size. Its grey PVC construction is suitable for both indoor and outdoor use within its rated temperature range.

Key Features

• One-piece body design requires no component disassembly for installation
• No compression nut needed, simplifying the connection process
• Non-conductive PVC construction will not corrode or rust
• Rated for temperatures up to 140 degrees F (60 degrees C)
• UL E32447 listed and CSA certified
• 3/4-inch trade size, 90-degree angle, grey finish

Compatibility

Designed as an OEM-style replacement fitting for 3/4-inch liquidtight flexible non-metallic conduit systems in standard electrical installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit and verify the absence of voltage before beginning work. Ensure the conduit trade size matches the fitting trade size before assembly. Do not exceed the rated temperature limit of 140 degrees F in service.

Technical Specifications

• Trade Size: 3/4 inch
• Angle: 90 degrees
• Material: PVC
• Color: Grey
• Maximum Temperature Rating: 140 degrees F (60 degrees C)
• Certifications: UL E32447, CSA
• Fitting Type: Liquidtight Non-Metallic
• Body Design: One-piece

Standard Information

• Brand: ABB
• Manufacturer Part Number: 10222776
