Aaon P63010 fan motor, condenser 1/3hp 460 volt 60hz 1ph 1110 rpm F48A11A27C

Product Description

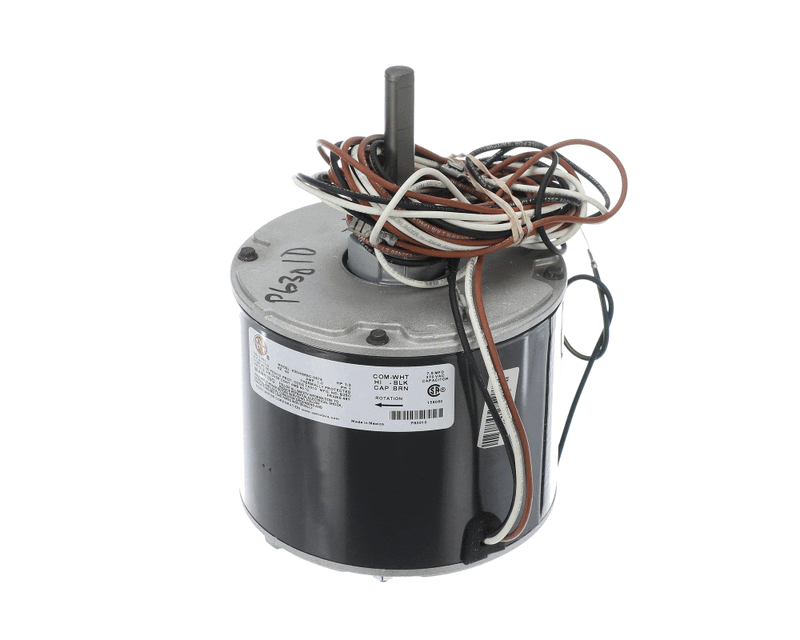

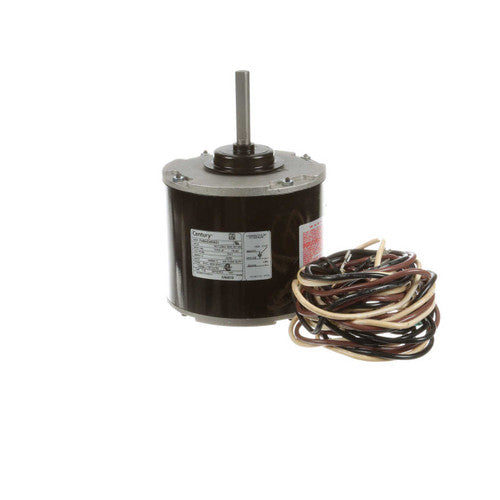

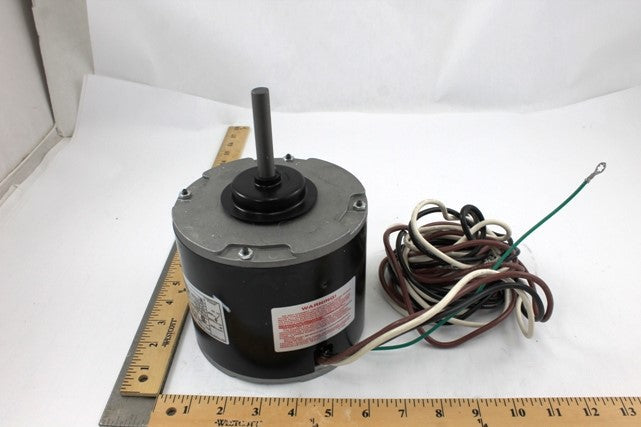

The AAON P63010 is a genuine OEM replacement condenser fan motor. This 1/3 horsepower motor operates at 460V, 60Hz, and 1 phase, delivering 1110 RPM. It is designed for HVAC applications, featuring a semi-enclosed design and ball bearings for smooth operation. This motor is a direct replacement for Aaon models F48A11A27C and Dayton 12N953.

• Genuine OEM Replacement Part for reliable performance
• Operates at 460 Volt, 60HZ, 1PH for specific electrical systems
• Semi-enclosed design with ball bearings for durability and smooth operation

Product Highlights

Durable fan motor for HVAC systems with vertical shaft up mounting.

Product Information

Standard Information

• Brand: AAON
• Manufacturer Part Number: P63010

Technical Specifications

• Brand: AAON
• MPN: P63010
• Voltage: 460 V
• Frequency: 60 Hz
• Horsepower: 1/3 HP
• RPM: 1100
• Amperage: 1.0 Amps
• Bearings: Ball Bearings
• Rotation: Clockwise (CW) shaft end
• Enclosure: Semi Enclosed
• Shaft Dimensions: 1/2 inch diameter x 2 3/4 inch length
• Motor Case Length: 4.74 inches
• Phase: 1 Phase
• Type: Condenser Motor
• Frame: 48Y
