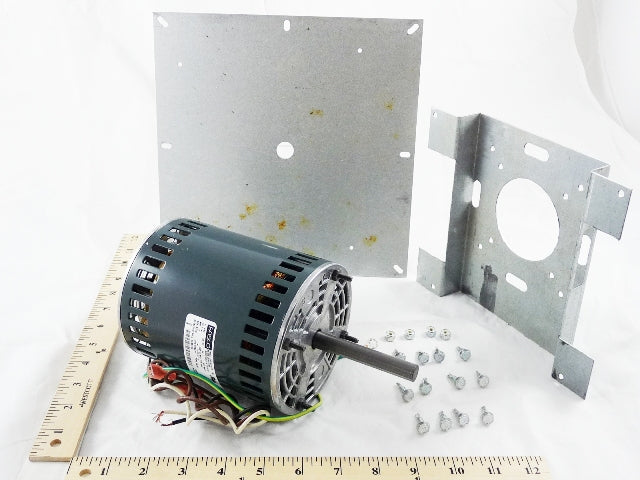

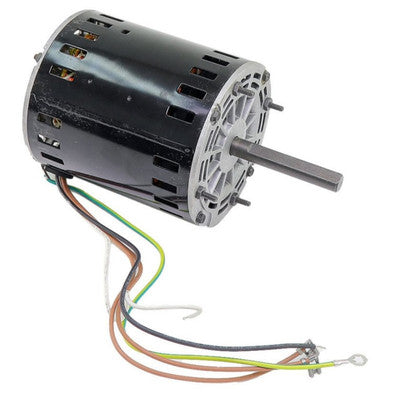

Aaon P48471 1/4HP 460V 3200RPM Motor Replaced by P4847B

Product Description

The AAON P48471 is a 1/4HP 460V motor designed for 3200 RPM operation. This model is obsolete and has been replaced by the AAON P4847B. The replacement, P4847B, functions as an OEM draft inducer motor, specifically engineered for high-efficiency commercial HVAC units to facilitate the safe exhaust of combustion gases.

• 1/4HP motor with 460V input.
• Operates at 3200 RPM.
• Replaced by AAON P4847B, an OEM draft inducer for HVAC systems.

Product Highlights

Obsolete 1/4HP 460V 3200RPM motor, replaced by AAON P4847B, an OEM draft inducer for commercial HVAC.

Product Information

Standard Information

• Brand: AAON
• Manufacturer Part Number: P48471

Technical Specifications

• Horsepower: 1/4HP
• Voltage: 460V
• RPM: 3200RPM
• Manufacturer Part Number: P48471
• Replacement Part Number: P4847B
• Frequency: 60 Hz
• Phase: 1 Ph
• Motor Type: ODP
• Enclosure Type: Open
• Rotation: CW
• Number of Speeds: 3
• Shaft Diameter: 3/8 Inch
• Shaft Length: 3 Inch
