Aaon ASM01686 refrigerant system module for VFD compressors (RSMV) OE370-26-RSMV V42440

Product Description

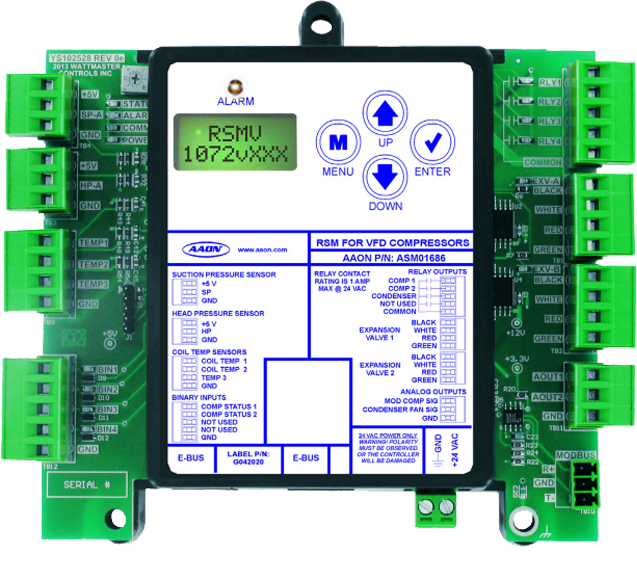

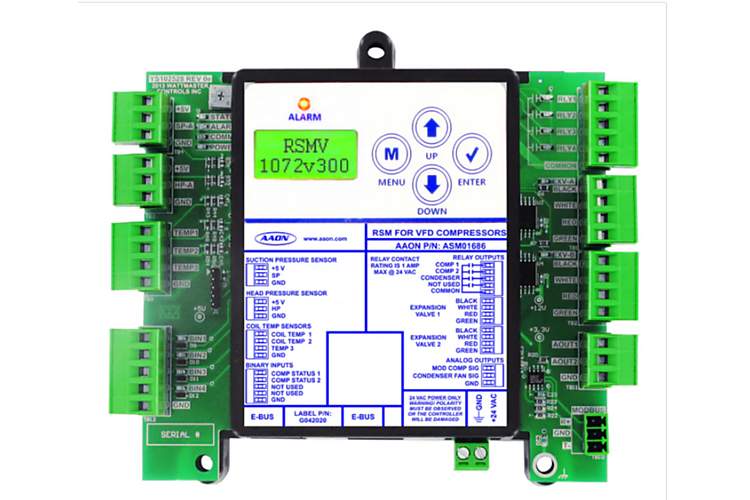

AAON ASM01686 is a Refrigerant System Module for VFD Compressors (RSMV) designed for HVAC units utilizing R410-A refrigerant. This module monitors and controls one tandem refrigeration circuit, integrating with VCCX2 and VCCX-IP series controllers via two E-BUS ports. It features a 2 x 8 LCD character display and 4 buttons for system status, setpoints, and configuration adjustments. It is essential for applications with VFD compressors, head pressure control, dehumidification, or heat pump systems.

• Used on units with R410-A refrigerant.
• Monitors and controls one tandem refrigeration circuit.
• Compatible with VCCX2 and VCCX-IP series controllers.

Product Highlights

This module provides control and monitoring for refrigeration circuits in HVAC units, supporting R410-A refrigerant and VFD compressor applications.

Product Information

Standard Information

• Brand: AAON
• Manufacturer Part Number: ASM01686
• Country of Origin: Unknown

Technical Specifications

• Refrigerant Compatibility: R410-A
• Controller Compatibility: VCCX2 and VCCX-IP series controllers
• Refrigeration Circuit Control: One tandem
• Maximum Connected Modules: 4
• Communication Ports: Two E-BUS
• Display: 2 x 8 LCD character display
• Interface: 4 buttons

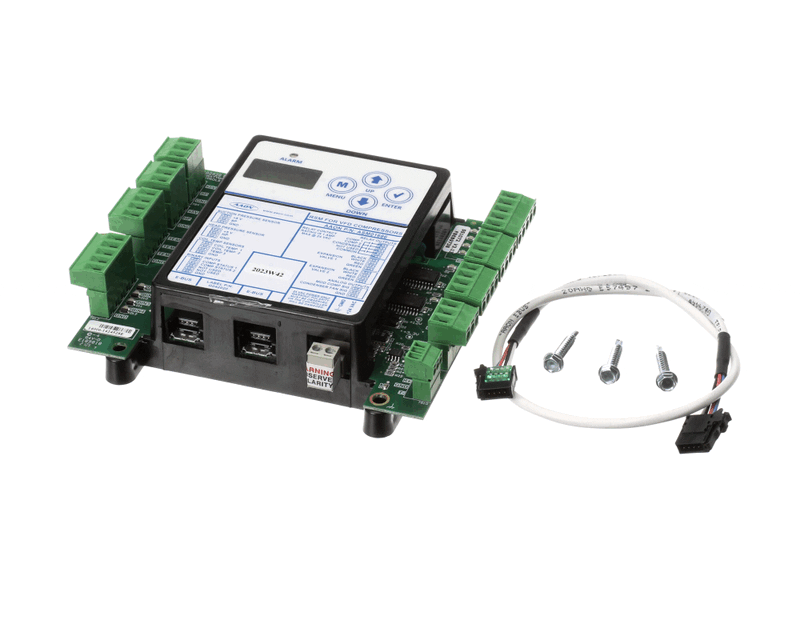

• Included Accessories: E-BUS cable
• Product Type: Refrigeration Module Board
