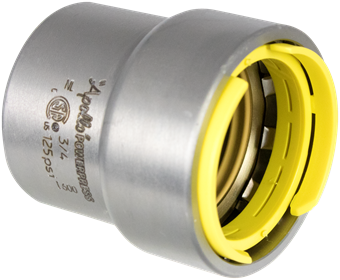

Aalberts Integrated Piping Systems PWR7482486 Apollo PowerPress Gas Stop End F 3/4 inches

Product Description

The AALBERTS INTEGRATED PIPING SYSTEMS PWR7482486 Apollo PowerPress® 417G is an end cap designed for gas applications using thick wall steel pipe. The Apollo PowerPress® system reduces installation times and ensures a clean working environment. It features DW-profile press fittings and valves in sizes 1/2" up to and including 2".

• Outstanding corrosion resistance due to ZnNi coating
• Clear identification of materials and dimensions
• Visu-Control-ring and Leak Before Pressed-function

Product Highlights

This stop end provides a secure and efficient solution for gas pipe systems, ensuring reliability and ease of installation.

Product Information

Standard Information

• Brand: AALBERTS INTEGRATED PIPING SYSTEMS
• Manufacturer Part Number: PWR7482486
• Country of Origin: Netherlands

Technical Specifications

• DN1: 3/4"
• Shape: End coupling
• Connection type: press (DW)
• Sealing: HNBR
• Product group: fittings
• Intrastat code: 73079980
• Country of origin: Netherlands
• Brand: Apollo
• Series: PowerPress Gas
• Product type: 417G
• Article: Apollo PowerPress Gas stop end F 3/4"
• Article number with gtin: PWR7482486 (08711985369946)
• Product number with gtin: PWR7482486 (08711985369946)
• Manufacturer: Aalberts integrated piping systems B.V. (VSH)
• Item group: 417G - Apollo PowerPress Gas cap (1 x press)
• Size: 3/4"
• Min. medium temperature: -40 °F
• Max medium temperature: 194 °F
• Material connection 1: Steel
• Material quality connection 1: St 35 (1.0308)
• Surface protection connection 1: Zinc/nickel
• System specific: Yes
• Nominal diameter connection 1: DN 20
• Outer pipe diameter connection 1: 26.7mm
• Outer pipe diameter connection 1 (imperial): 1.05"
• Wall thickness, connection 1: 2.7mm
• Wall thickness, connection 1 (imperial): 0.11"
• Connection 1: Press sleeve
• Contour code: DW
• Material sealing: Hydrogenated acrylonitrile butadiene rubber (HNBR)
• Length of connection 1: 37.5mm
• Length of connection 1 (imperial): 1.48"
• Working length connection 1: 6.5mm
• Working length connection 1 (imperial): 0.26"
• Medium temperature (continuous): -40°C - 90°C
• Medium temperature (continuous) (imperial): -40°F - 194°F
• With sealing rings/gaskets: No
• With drain valve: No
• With de-aerator: No
• Capped: Yes
• With connection indicator: Yes
• FM quality mark: No
• UL quality mark: No
• ULC quality mark: No
• LPCB quality mark: No
• DIN-CERTCO certificate: No
• VdS quality mark: No
• With approval for TÜV: No
• DVGW quality mark for gas: No
• DVGW quality mark for water: No
• KIWA certified: No
• Gastec QA mark: No
• KOMO certified: No
• Gastec QA - AR 214 (H2): No
• Type approval according to BBR/EKS: No
• Finish/Color: Gray/Zinc Nickel-Plated
• Length: 1-1/2 IN
• Nominal Size: 3/4 IN
• Series/Model: 417G
• Wall Thickness: 0.11 IN
• Additional Specifications: Includes: HNBR Sealing Elements, Capped and Connection Indicator
• Industry Standards: CRN, CSA Certified, ICC Certified, IAPMO Certified
• Item Name: Cap
• Material: Carbon Steel
• Outside Diameter: 1.05 IN
• Sub Brand: PowerPress®
• Temperature Rating: -40 - 194 DEG F
• d1: 1.05
• l1: 1.48
• z1: 0.26
• Materials: steel (St 35 (1.0308))
• Finishing: zinc-nickel plated
